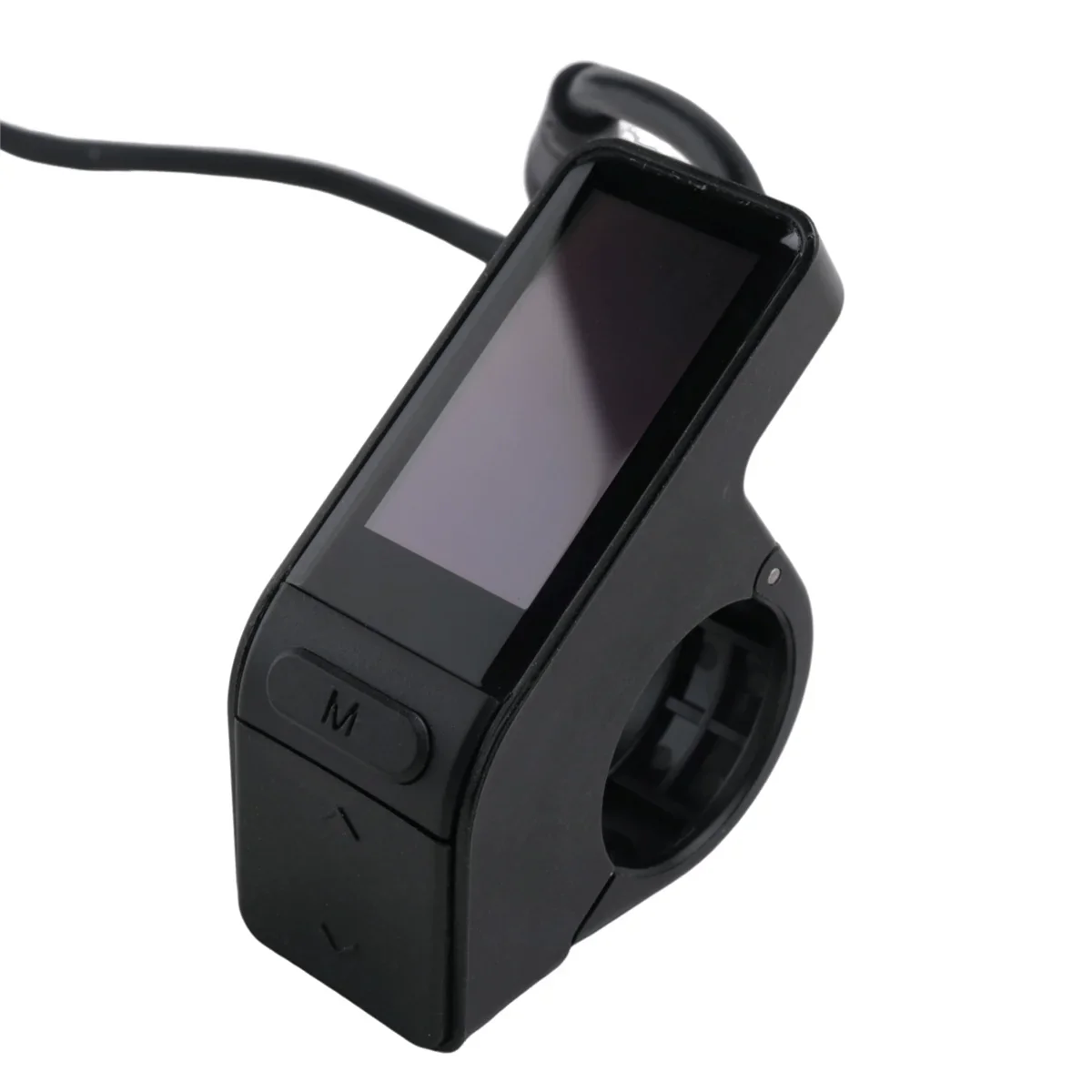

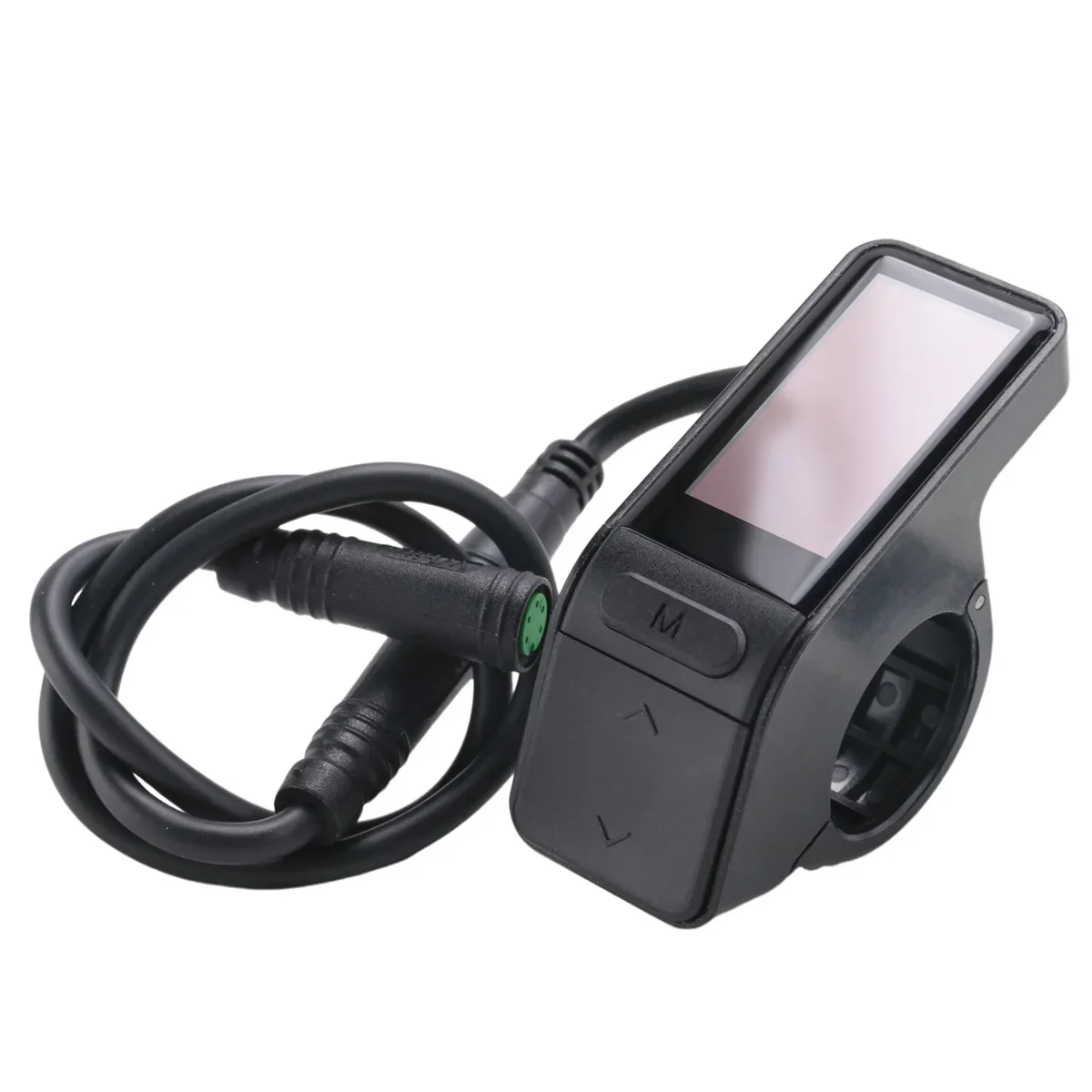

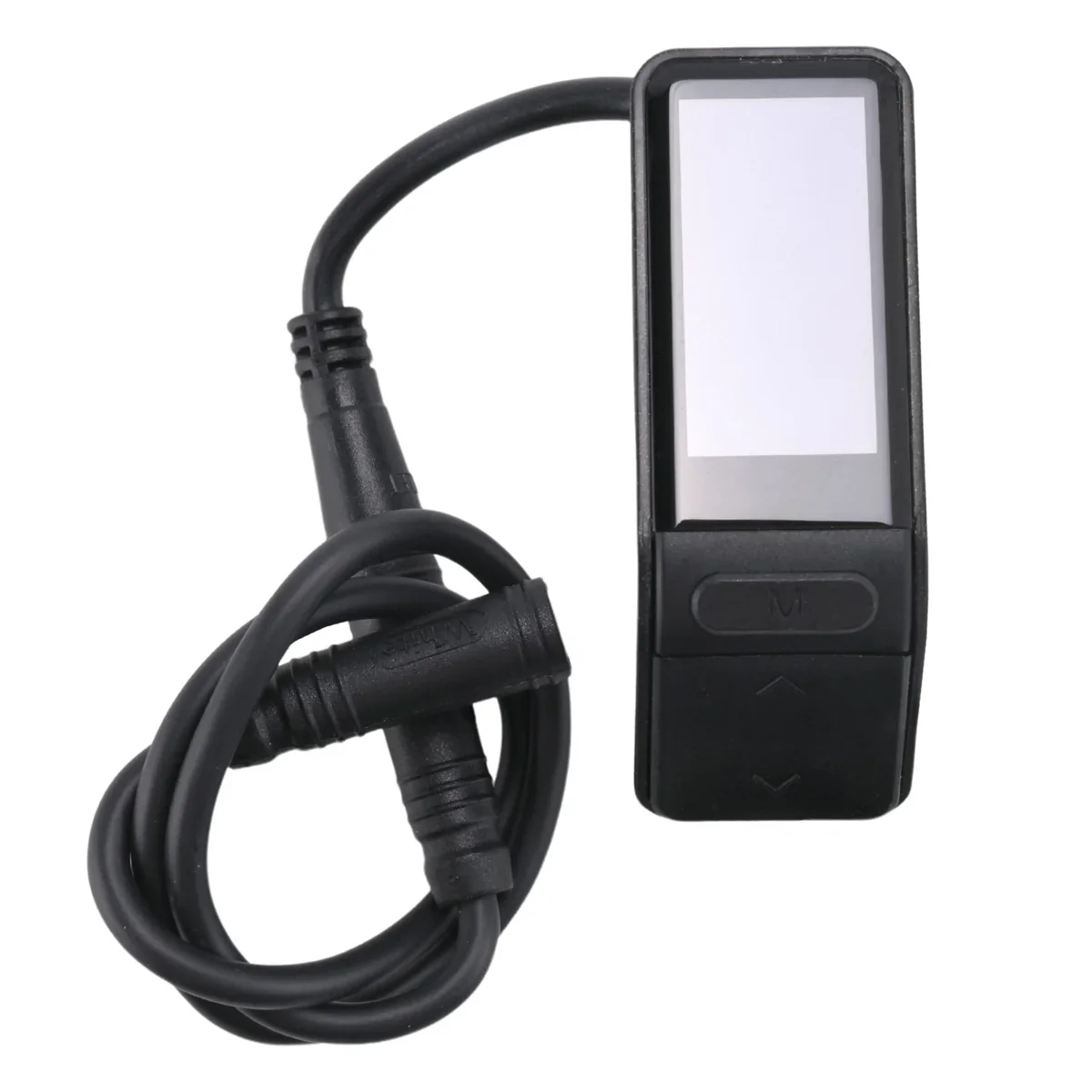

DM03 BAFANG Mini LCD Display For BBS01/02 BBSHD Mid Drive Motor

1. Specifications

Power supply: DC 24V/36V/48V
Rated current: 18 mA
Shutdown leakage current: Less than 1uA
Screen specification: 1.3 inch OLED
Communication method: UART/ CAN-BUS 2 modes
Operating temperature: -20°C ~ 60°C
Storage temperature: -30°C ~ 80°C

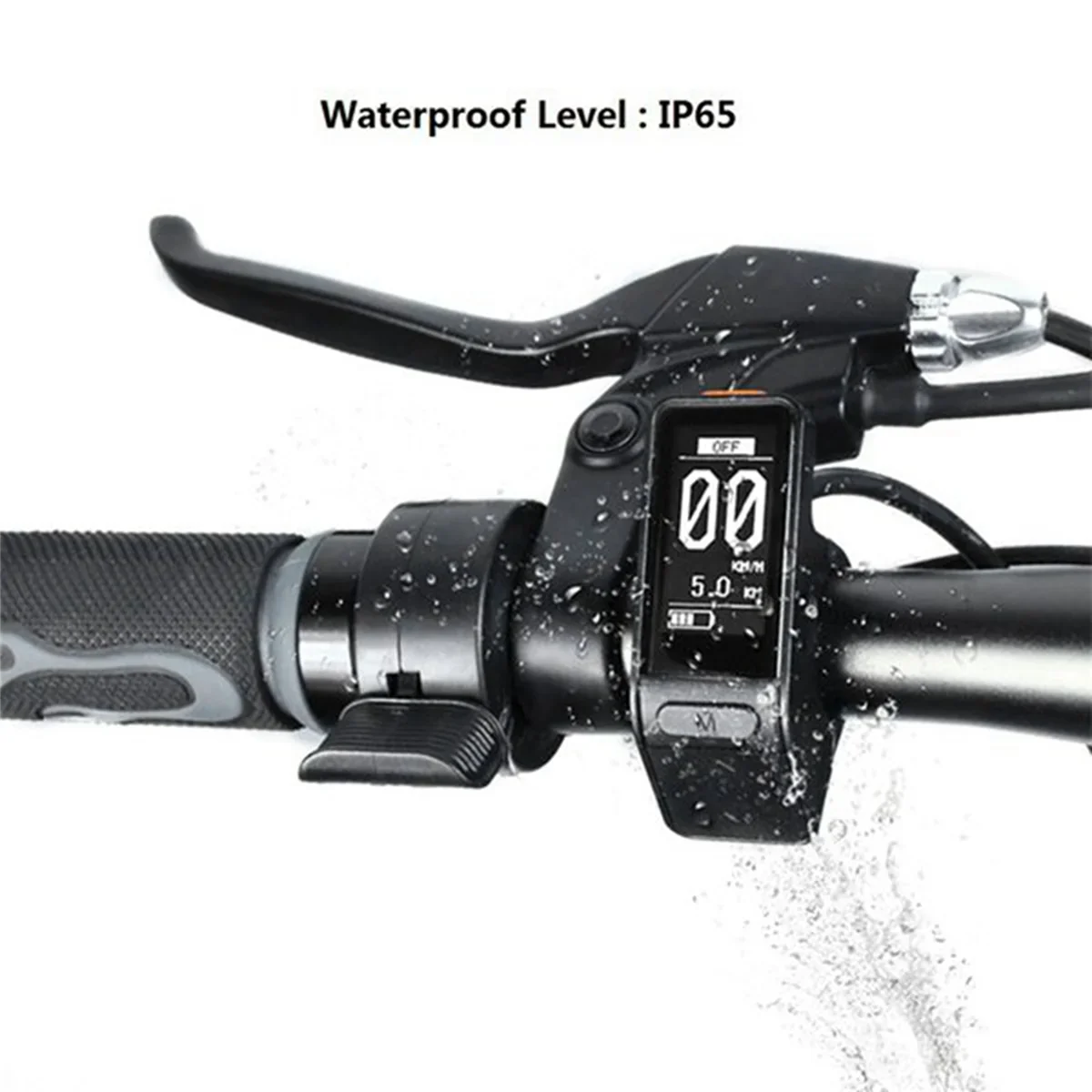

Waterproof level: IP65

Function overview:

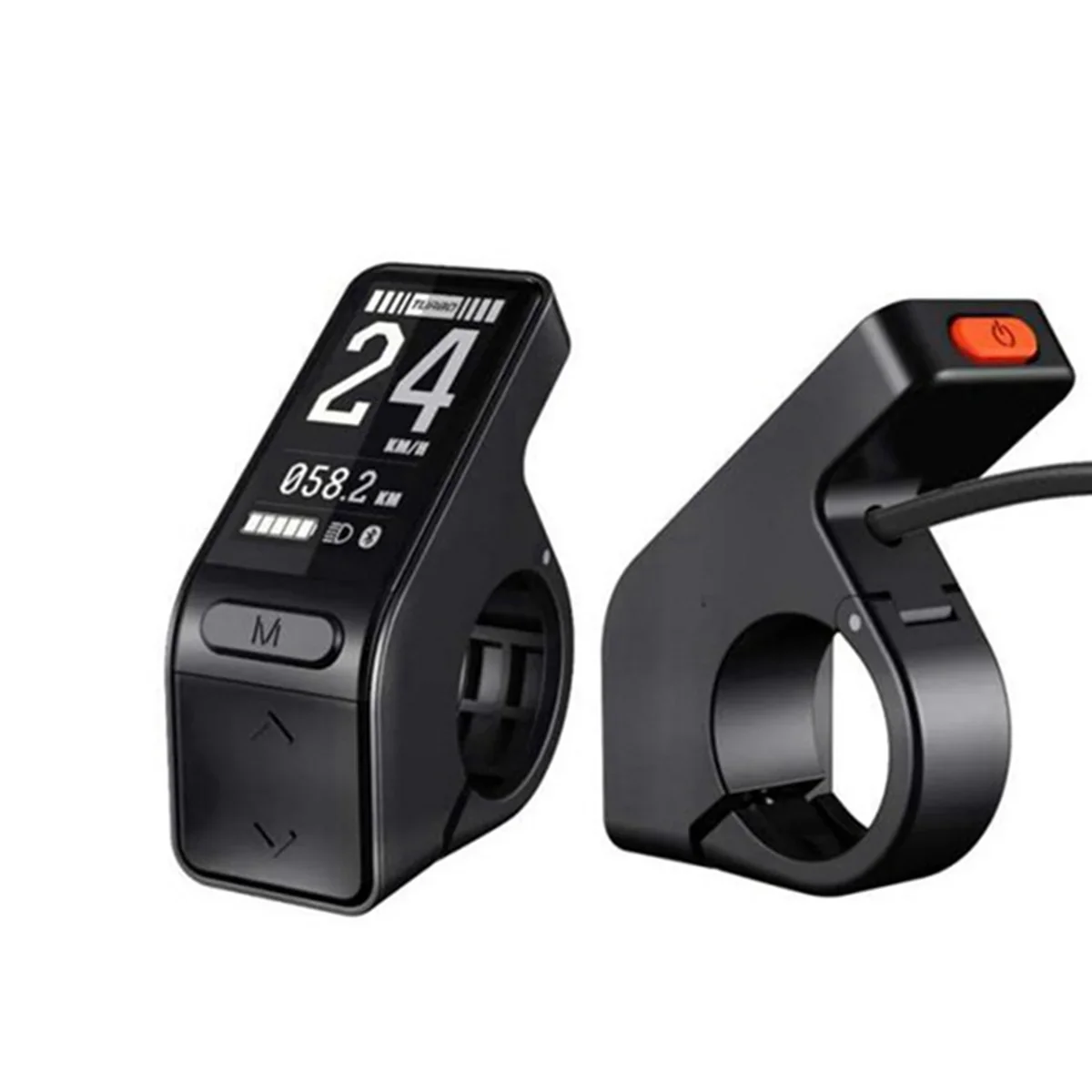

Four buttons, ergonomic design
Selective digital and icon power assist gear for high visibility
Unit: Km / miles
Speed: Real-time speed(SPEED),maximum speed(MAX),average speed(AVG)
Battery indicator with percentage display
Range: Endurance mileage(available if BMS provides necessary info)
Headlight on/off status indication and control
Mileage: Subtotal mileage(TRIP), total mileage (ODO)
Walk assist function
Parameters setting and advanced setting
Error code indication
material: plastic
Color as shown

Attention:
1. The DM03 is the upgraded version of SW102.
2. The DM03 is not with Bluetooth Function now.
3. The DM03 only fits for Bafang motor with UART protocol.
4. Do not plug in or unplug this display when the power to the unit is on.
5. Avoid collisions.
6. Protect the display's membrane to provide water resistant performance.
7. Do not attempt to reset parameters if the display is not working.

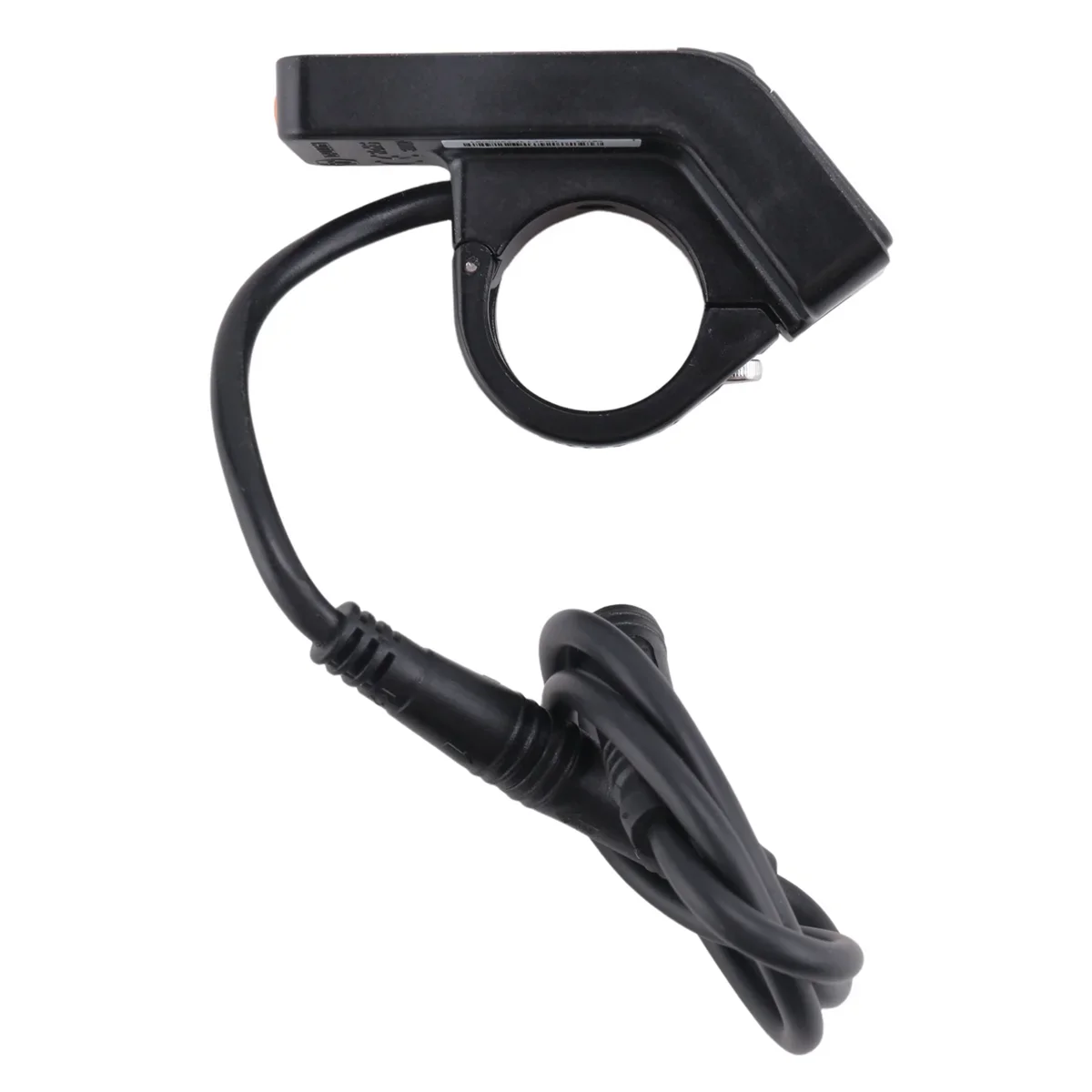

8. Installation: Install the display and button controller on the handlebar and adjust its location. Plug it into the controller with power off.

Package Contents: 1 x SW102 eBike Display Only the above package content, other products are not included. Note: Light reflection and different displays may cause the colour of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
