It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
Please be careful to limit the Absolute Maximum Current below 250A,setting page
Specs:

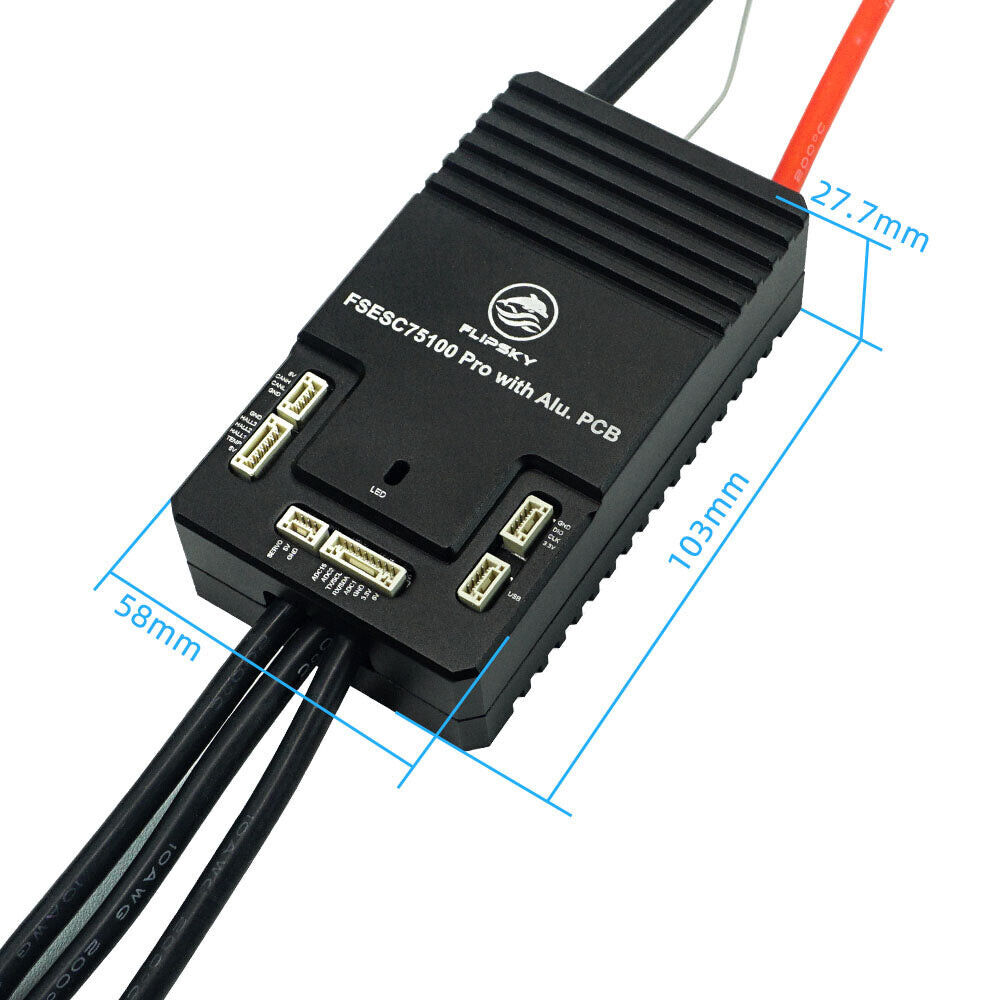

75100 Pro Size: L103mm*W58mm*H27.7mm
Voltage:14-84V (4-20S)
Current:100A Continuous,burst 120A
BEC:5V@1.5A
Support BLDC square wave mode control and FOC sine wave mode
Firmware: latest (firmware update supported)
ERPM:150000

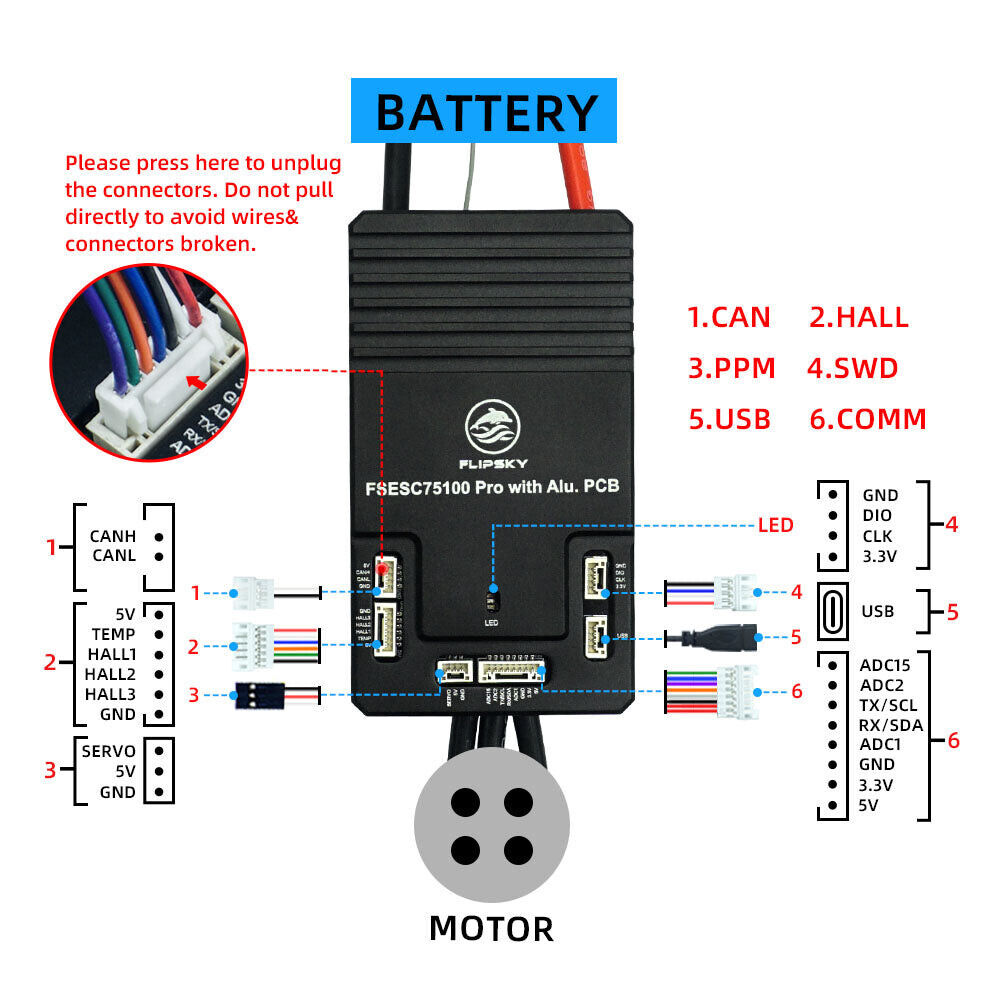

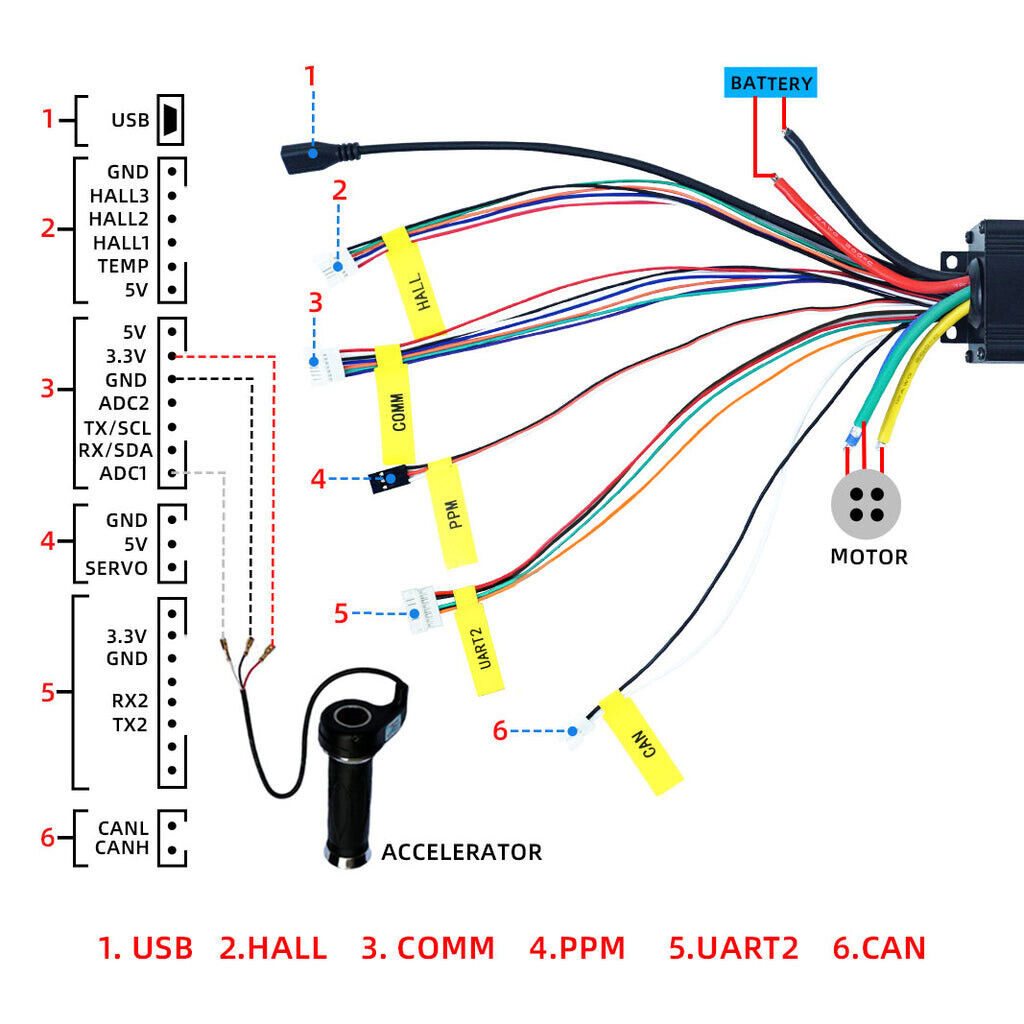

Control Interface Ports:USB,CAN,UART
Supported Sensors:ABI，HALL，AS5047，AS5048A
Input Set Support:PPM，ADC，NRF,UART
Wire Size: 10AWG(75100 Pro)
Programmable: Yes
Regenerative Capacity: Yes
Newly upgraded:
Change connection wires from 12Awg to 10Awag.
More sensitive temperature detection function
Integrated bluetooth module design
Size & design upgraded
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
