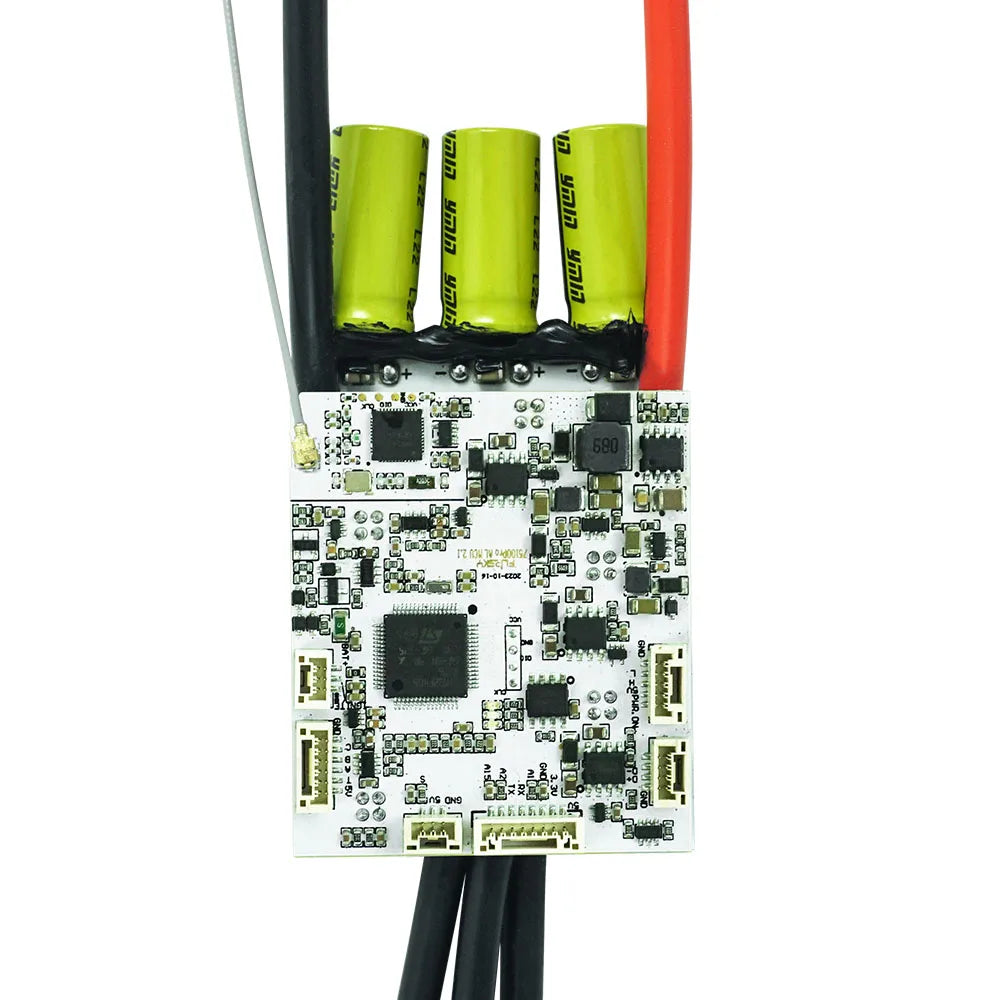

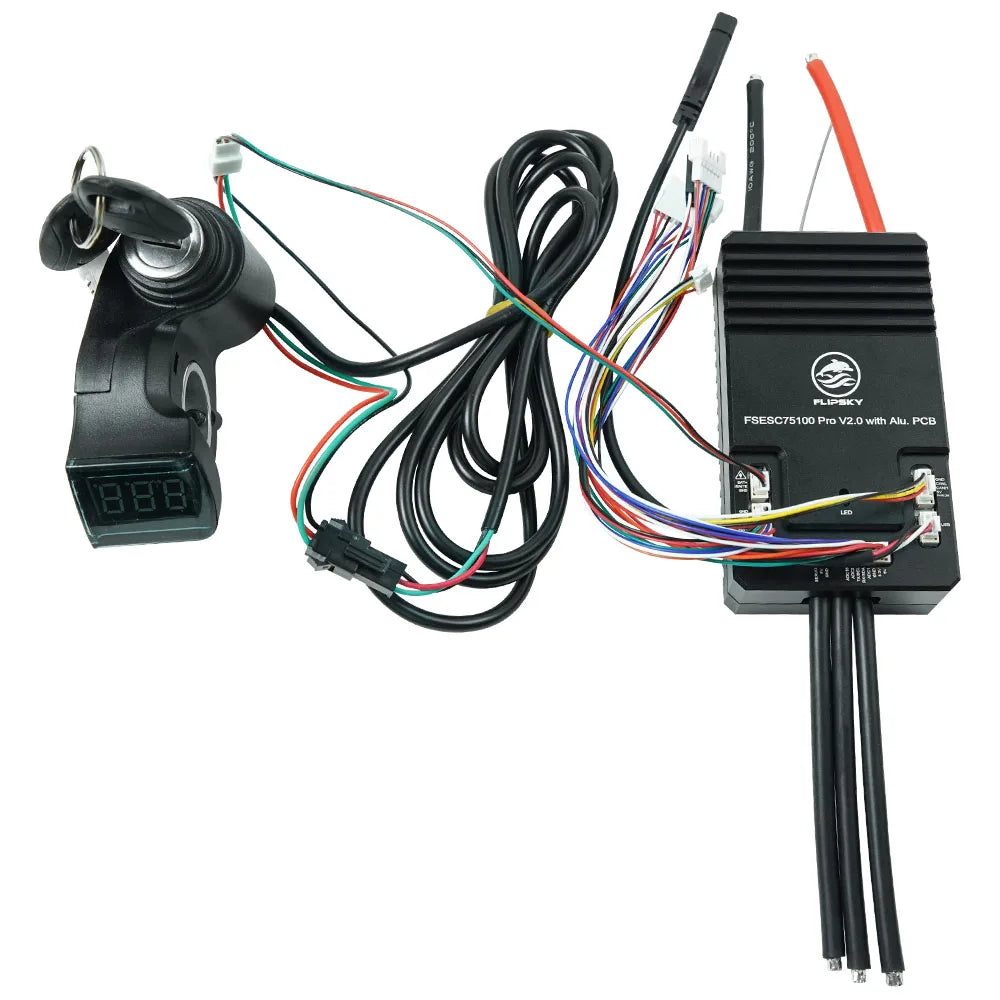

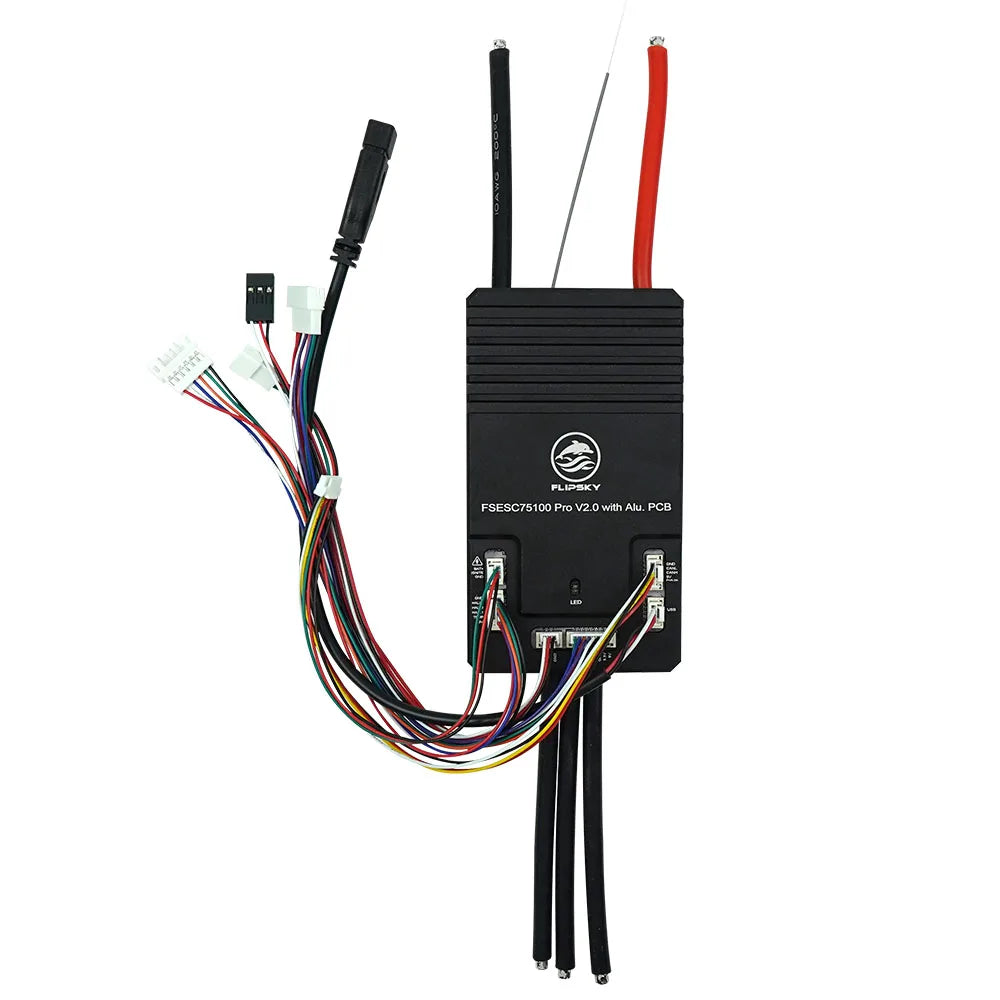

Flipsky 75100 Pro V2.0 with Key Switch & Aluminum PCB Based on VESC

Spec:

• Firmware: 6.02 (firmware update supported)

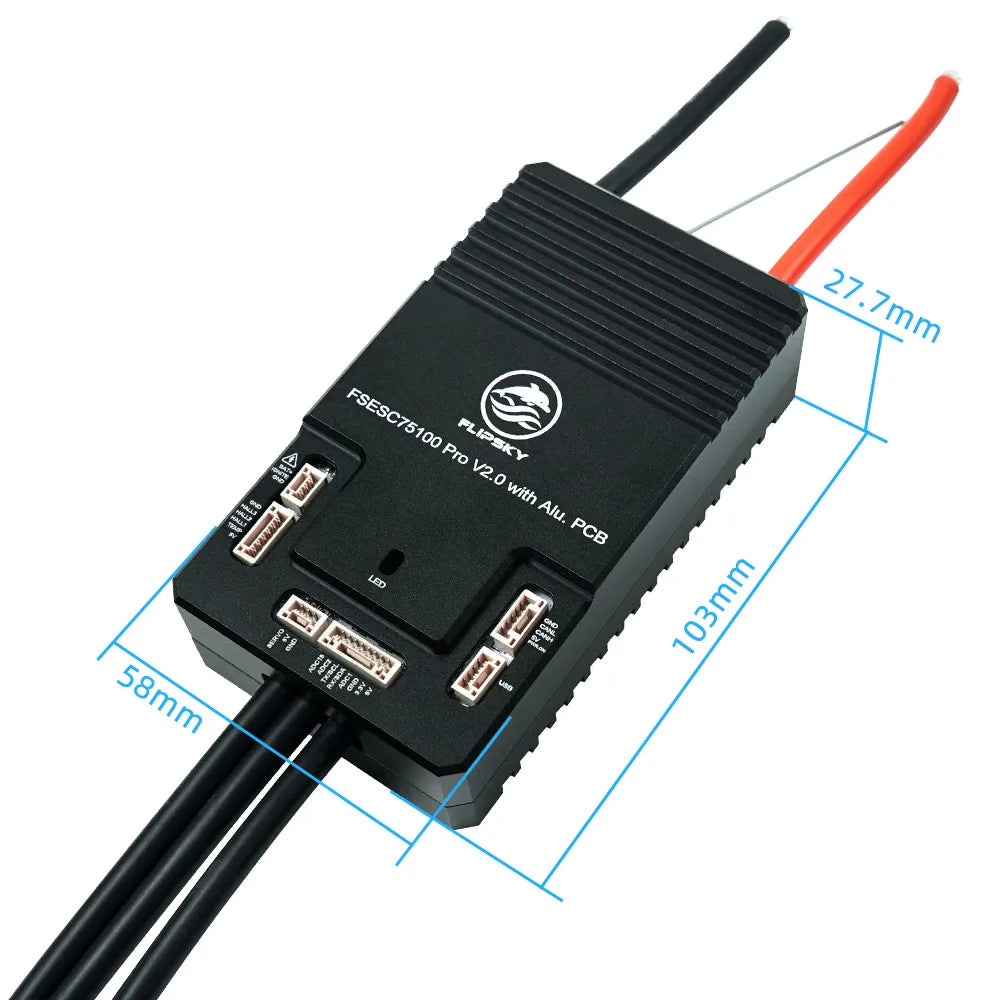

• Size: L103mm*W58mm*H27.7mm

• Voltage:14-84V (4-20S)

• Current:100A Continuous

• BEC:5V@1.5A

• Support BLDC square wave mode control and FOC sine wave mode

• ERPM:150000

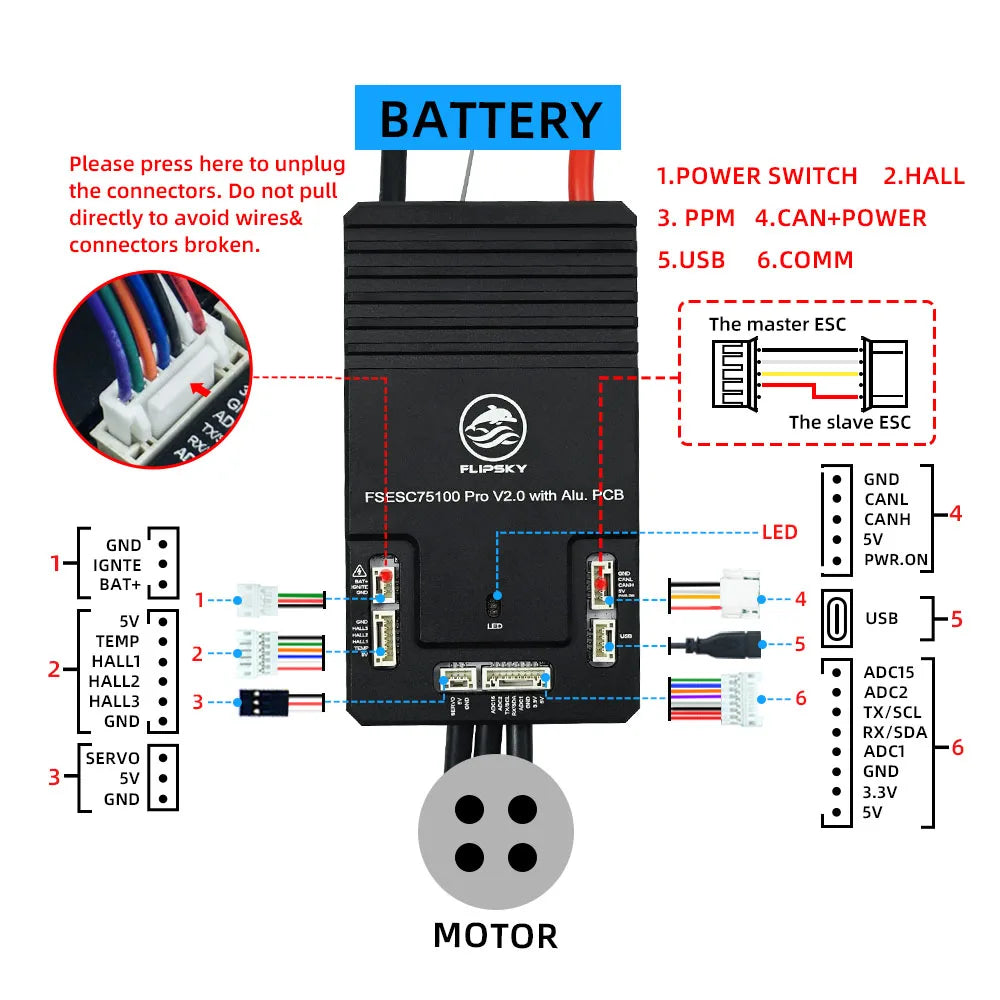

• Control Interface Ports:USB,CAN,UART

• Supported Sensors:ABI，HALL，AS5047，AS5048A

• Input Set Support:PPM，ADC，NRF,UART

• Wire Size: 10AWG(75100 Pro)

• Programmable: Yes

• Regenerative Capacity: Yes

• Phase Filter: Yes

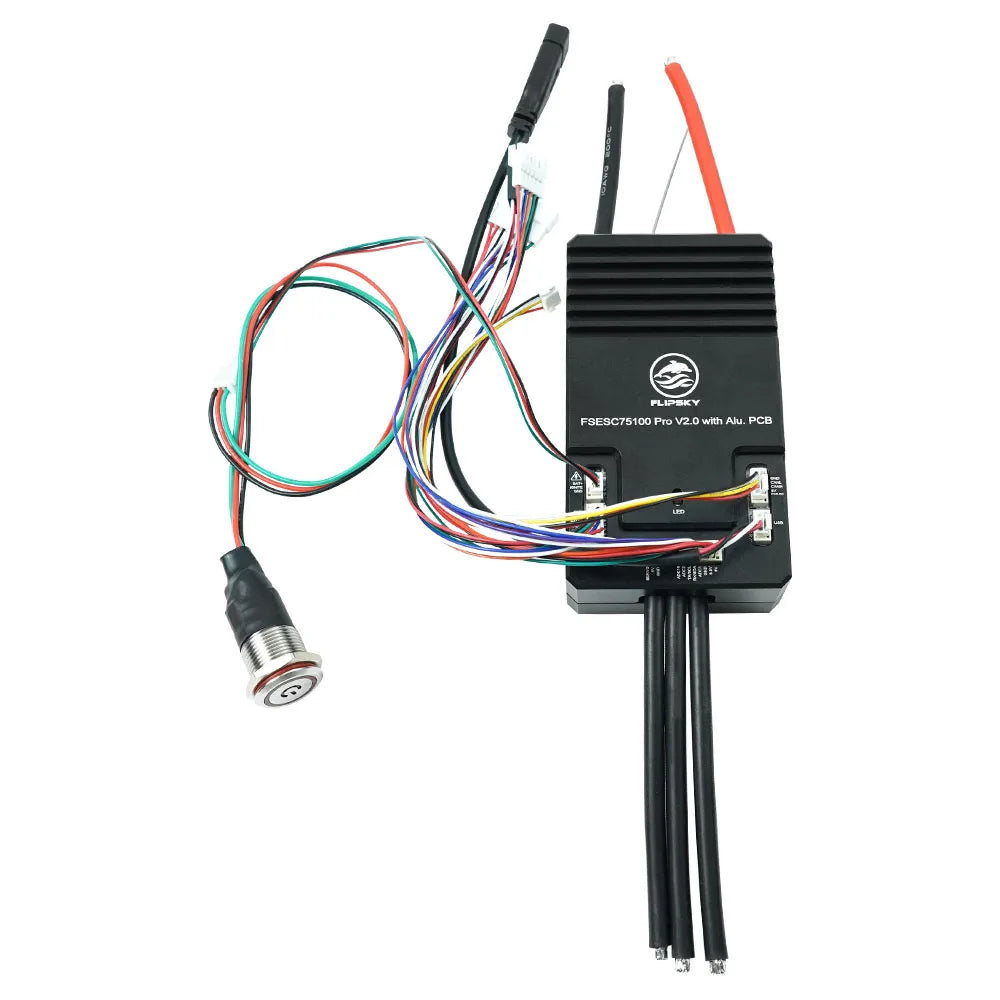

• Power Switch Button: Red
