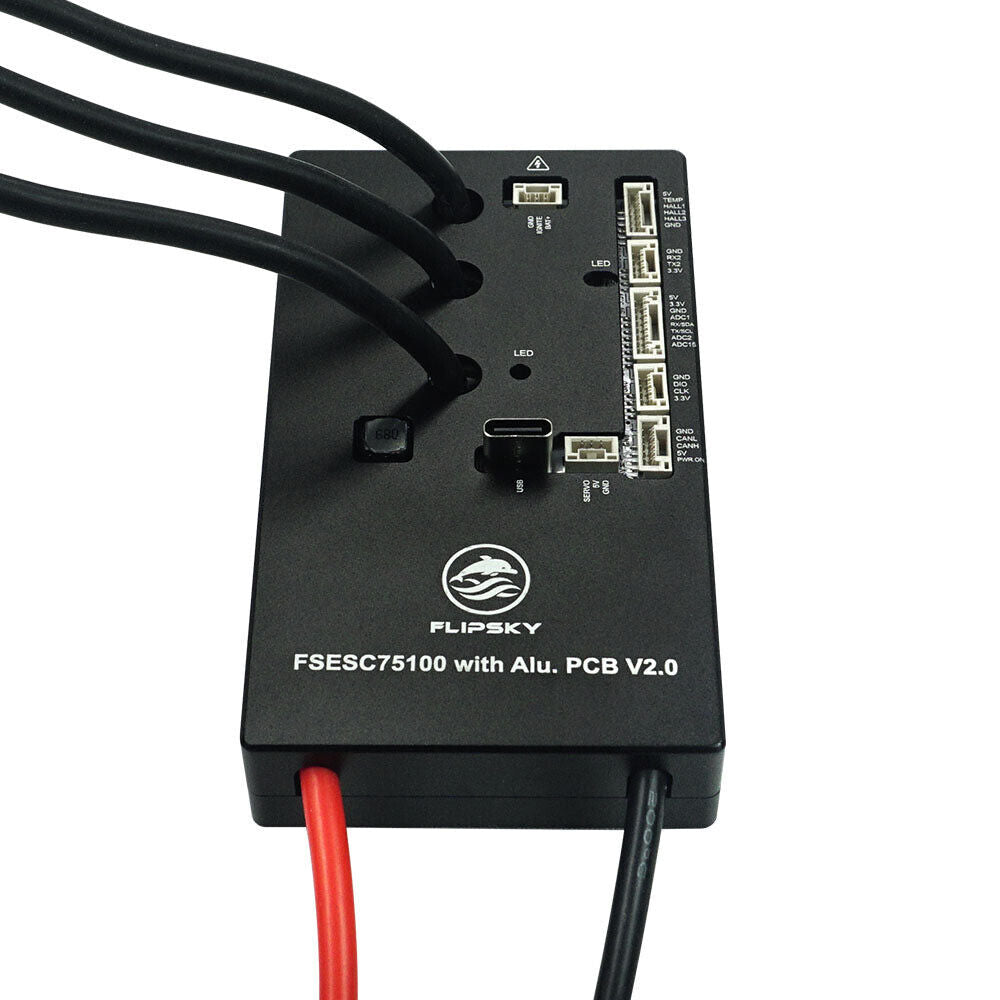

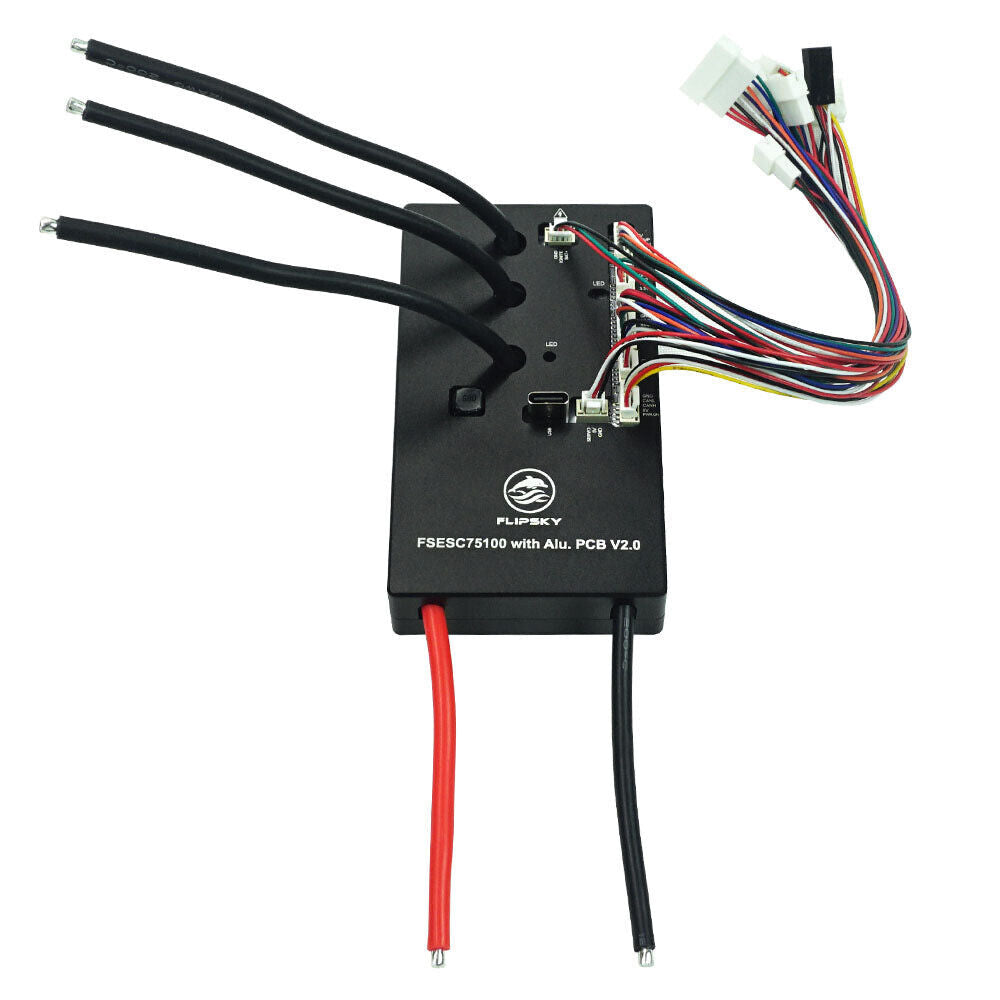

Flipsky 75100 V2.0 ESC With Key Switch & Aluminum PCB Based on VESC

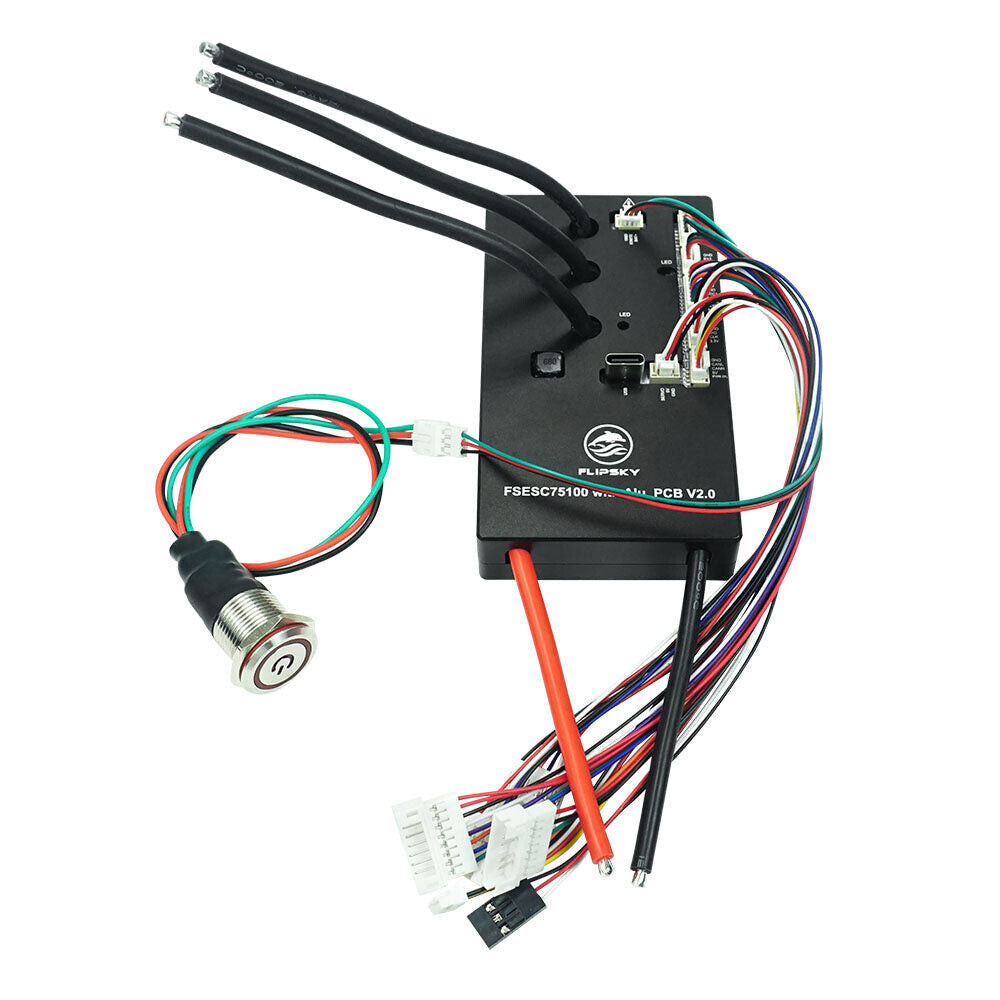

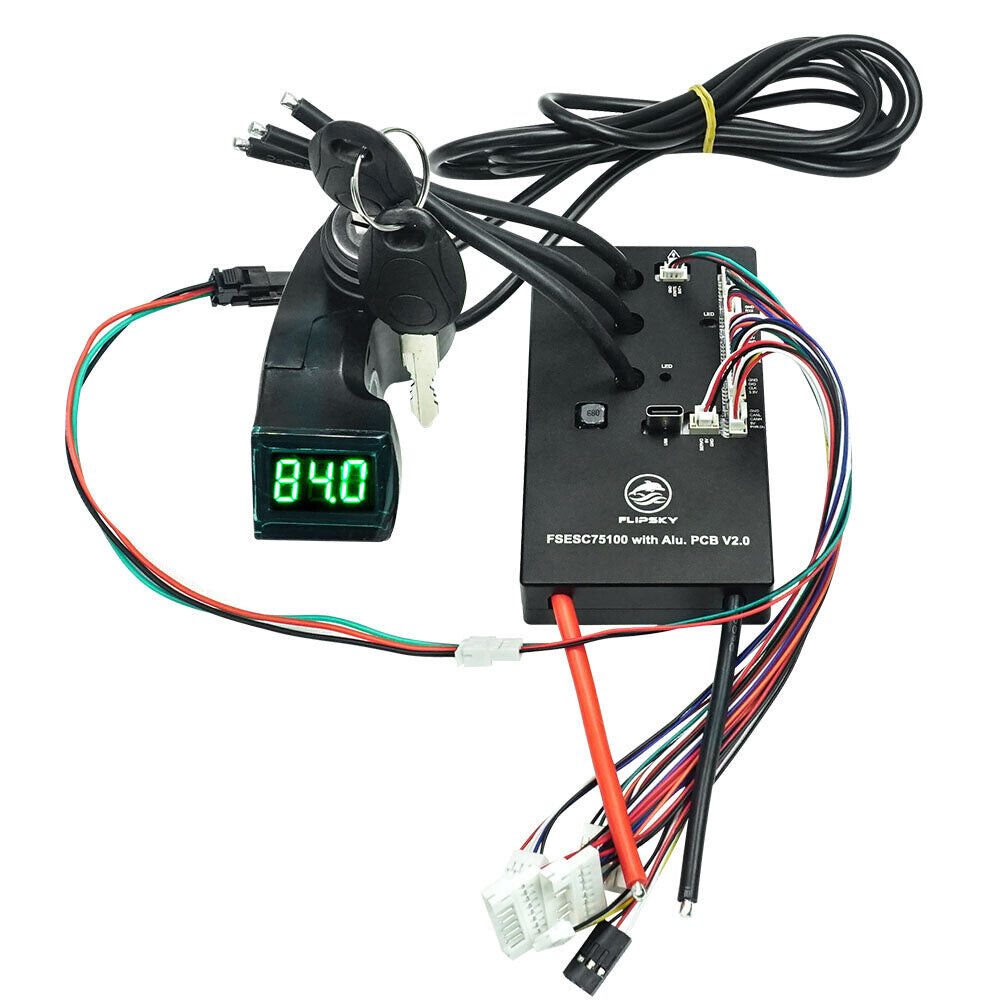

Comes with both Key Switch and Power Button Included

75100 With Alu. PCB V2.0 is based on VESC 75 series, programmable via vesc_tool3.0 (firmware5.2)
with overheat and over current protection, regenerative braking capacity.
It's designed with aluminum case, with good heat dissipation and max working voltage can be
20S, 84V. Also, 75100 With Alu. PCB V2.0: supports single serial port function, and integrates
power on / off switch and key switch for Ebike / Escooter etc.

Specs:

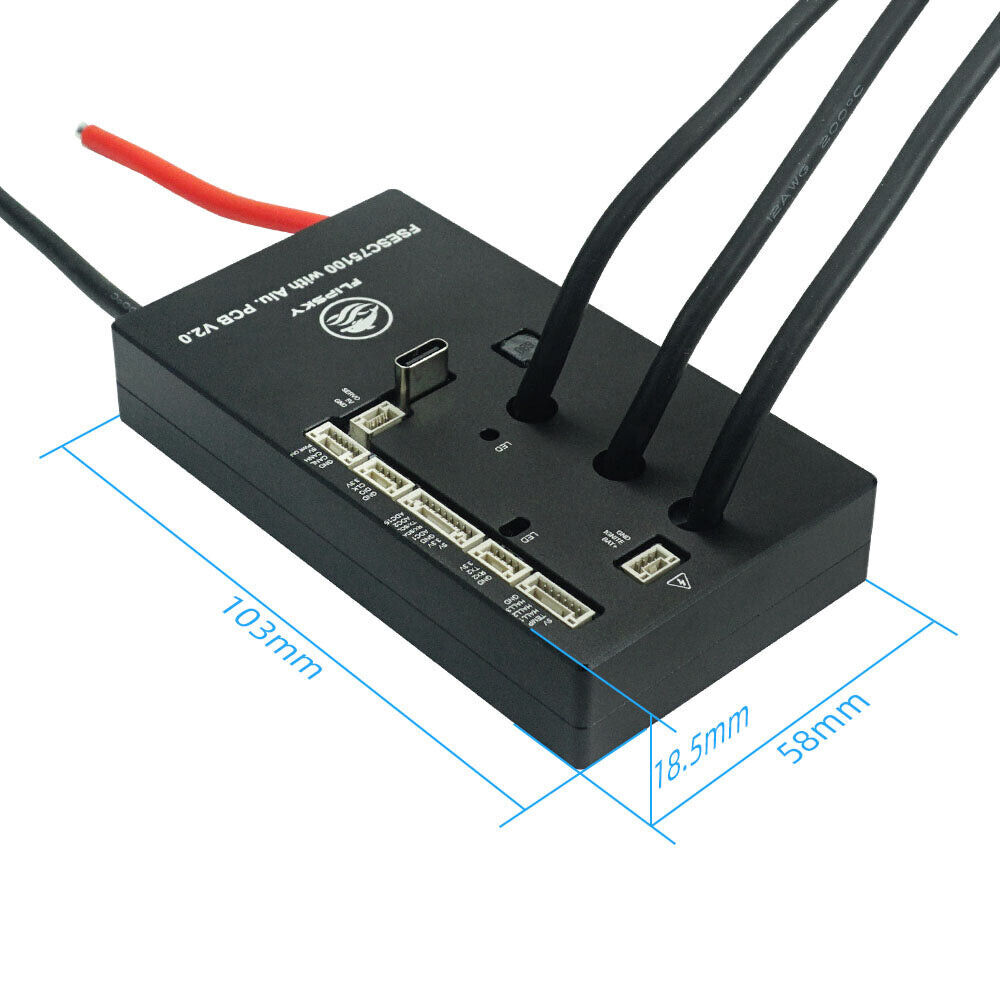

• Size: 103X58X24mm
• Voltage:14-84V (4-20S)
• Continuous Current: 100A
• Peak Current: 250A
• Firmware: 5.02; firmware upgrade available (Phase filter needs to be turned off for firmware 5.03 or newer)
• BEC: 5V@1A
• Modes: DC，BLDC，FOC(sinusoidal)

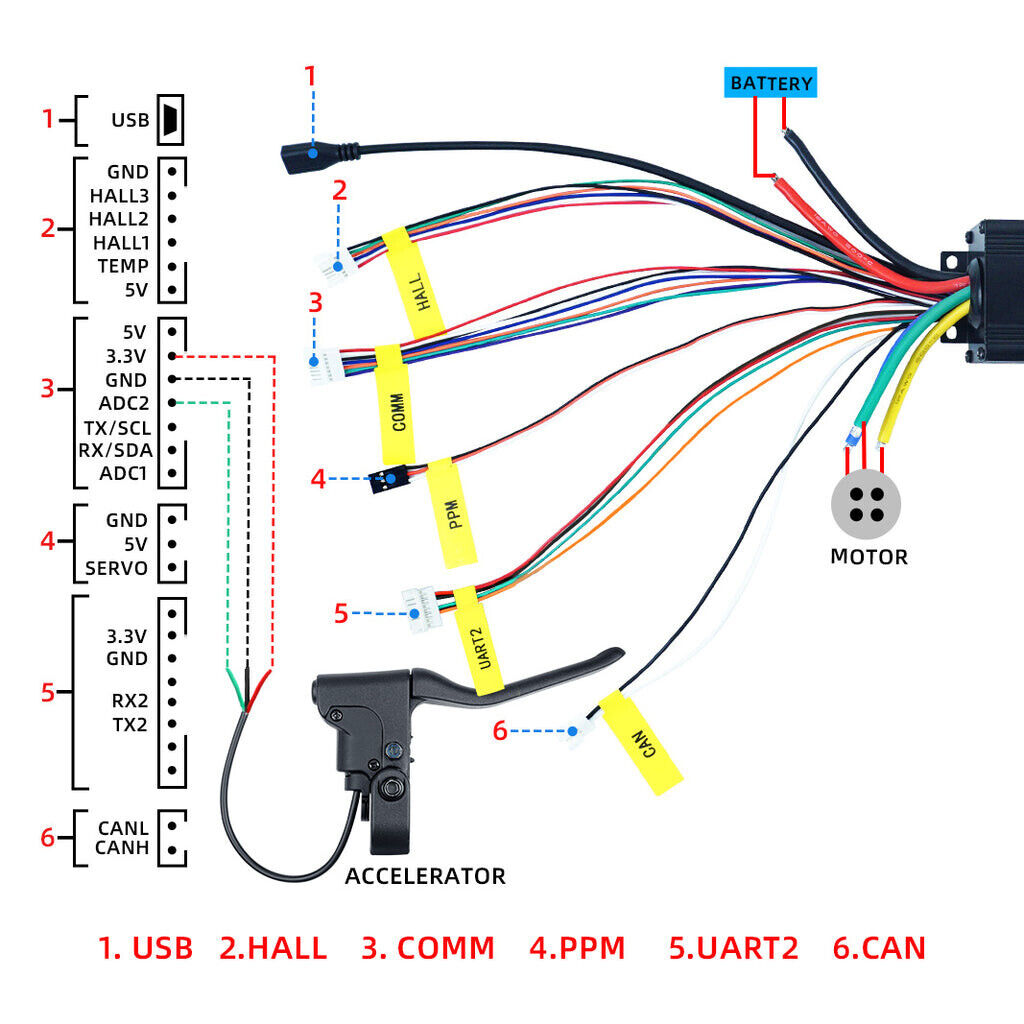

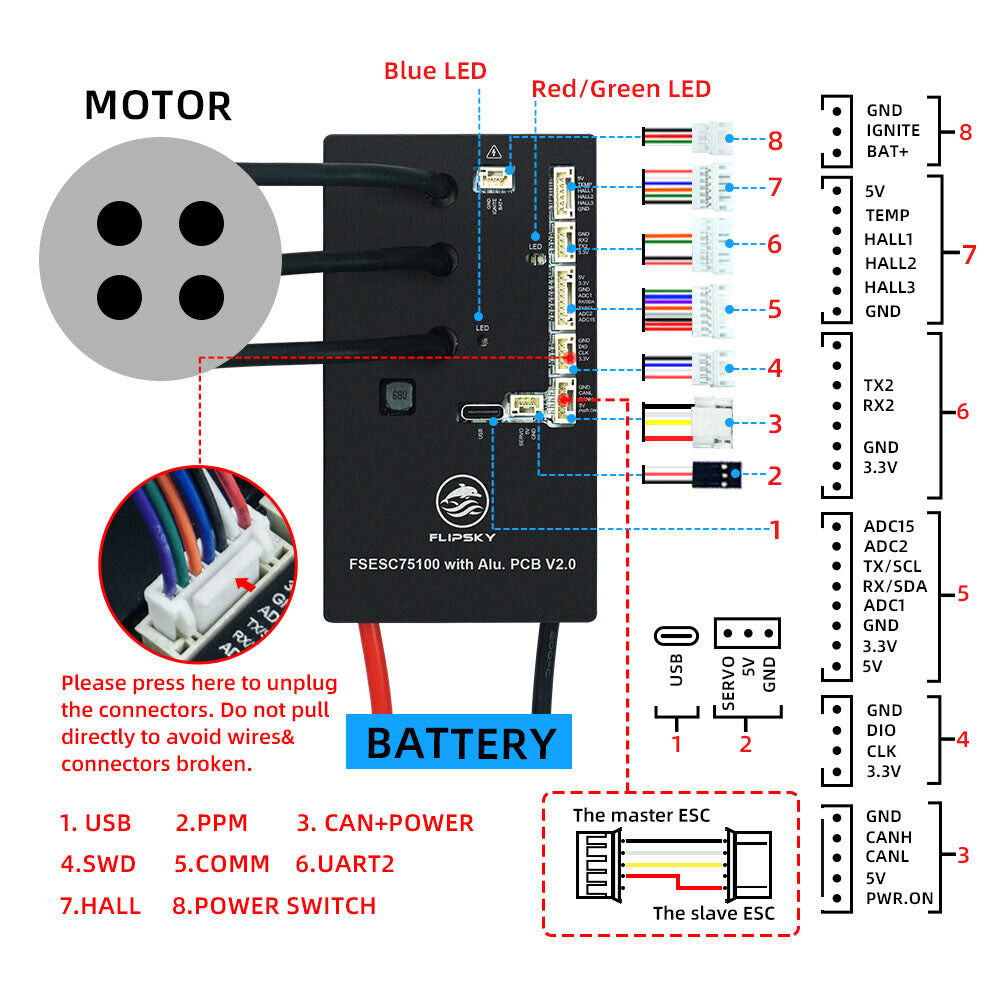

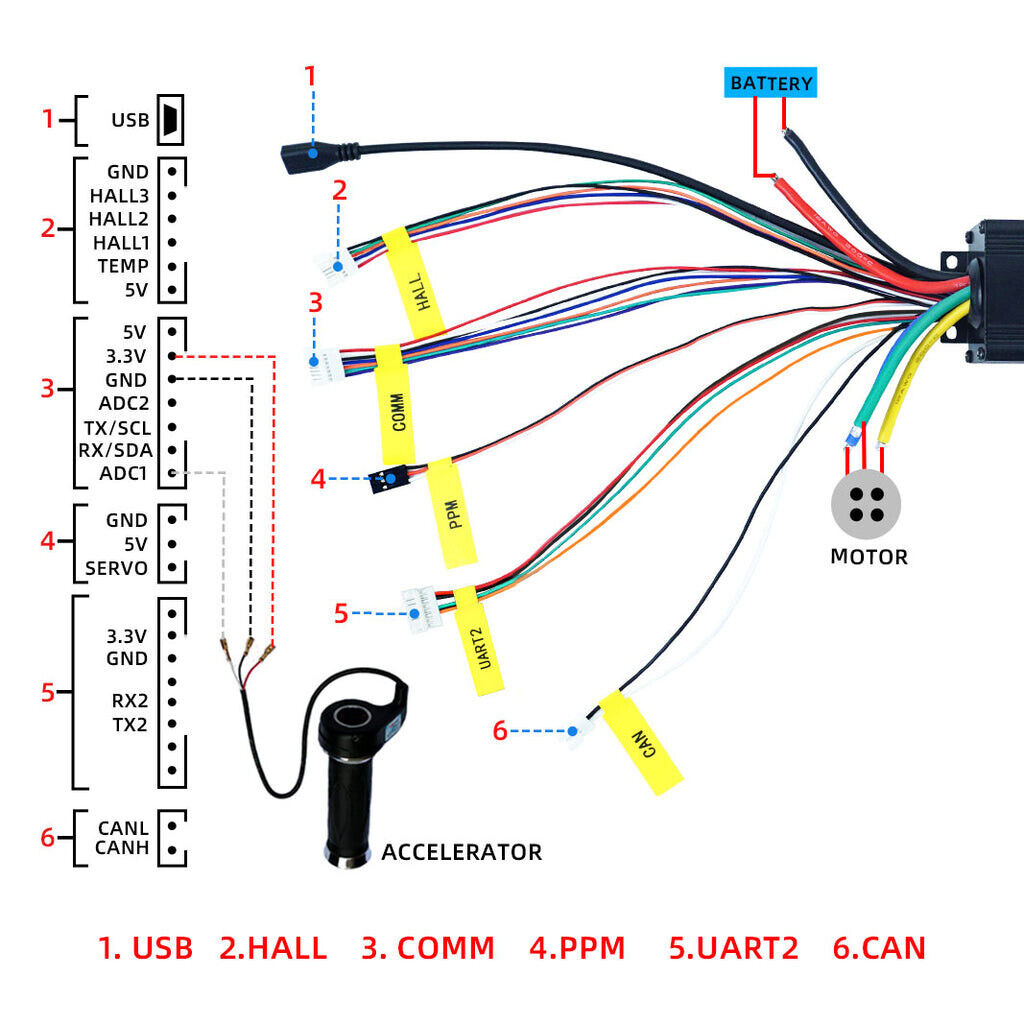

• Control Interface Ports: USB,CAN,UART
• Supported Sensors: ABI，HALL，AS5047，AS5048A
• Input Set Support: PPM，ADC，NRF,UART
• Wire Size: 12AWG
• Programmable: Yes
• Regenerative Capacity: Yes
• Power Switch Button: Red
