It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
Specs:
Firmware: 5.2, supports firmware upgrade
Voltage: 14-84V (safe for 4-20S)
Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300A
BEC: 5V@1A
Support Modes: DC, BLDC, FOC (sinusoidal)
ERPM: 150000

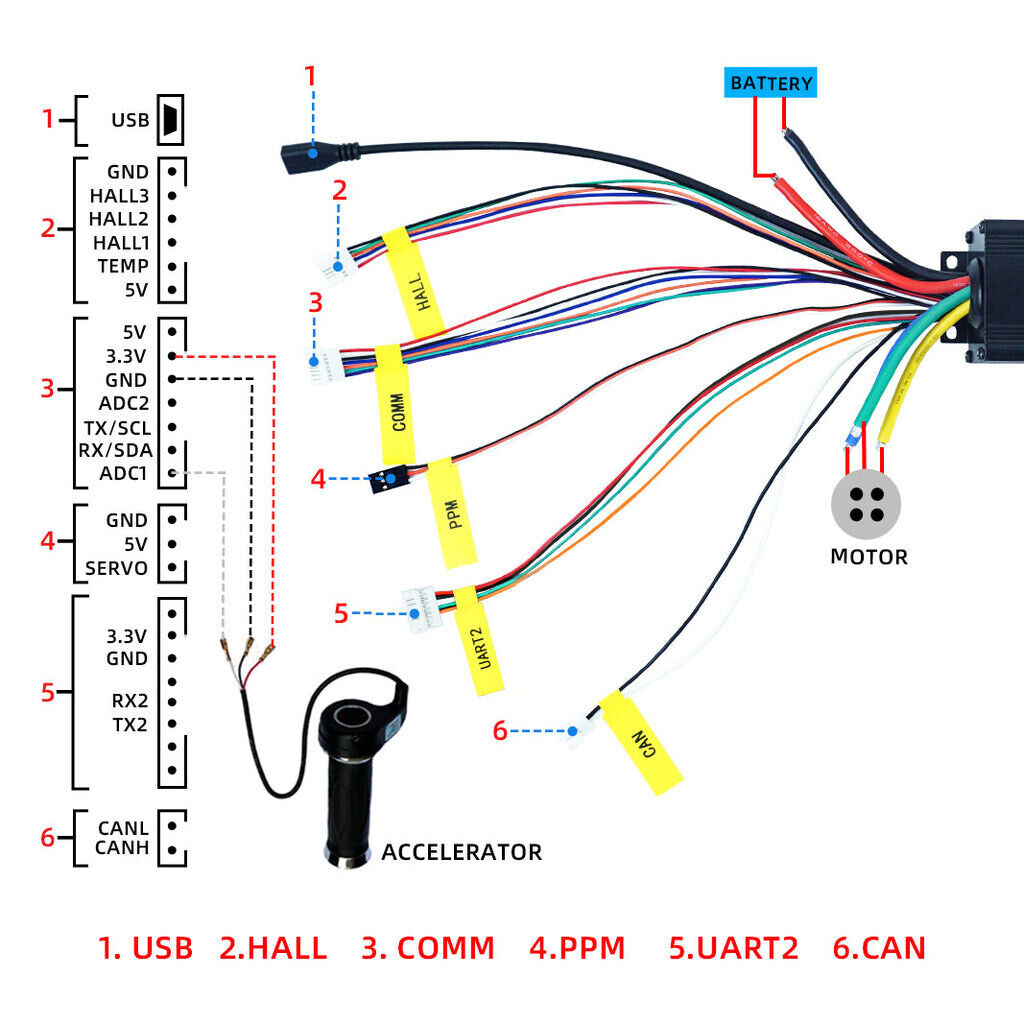

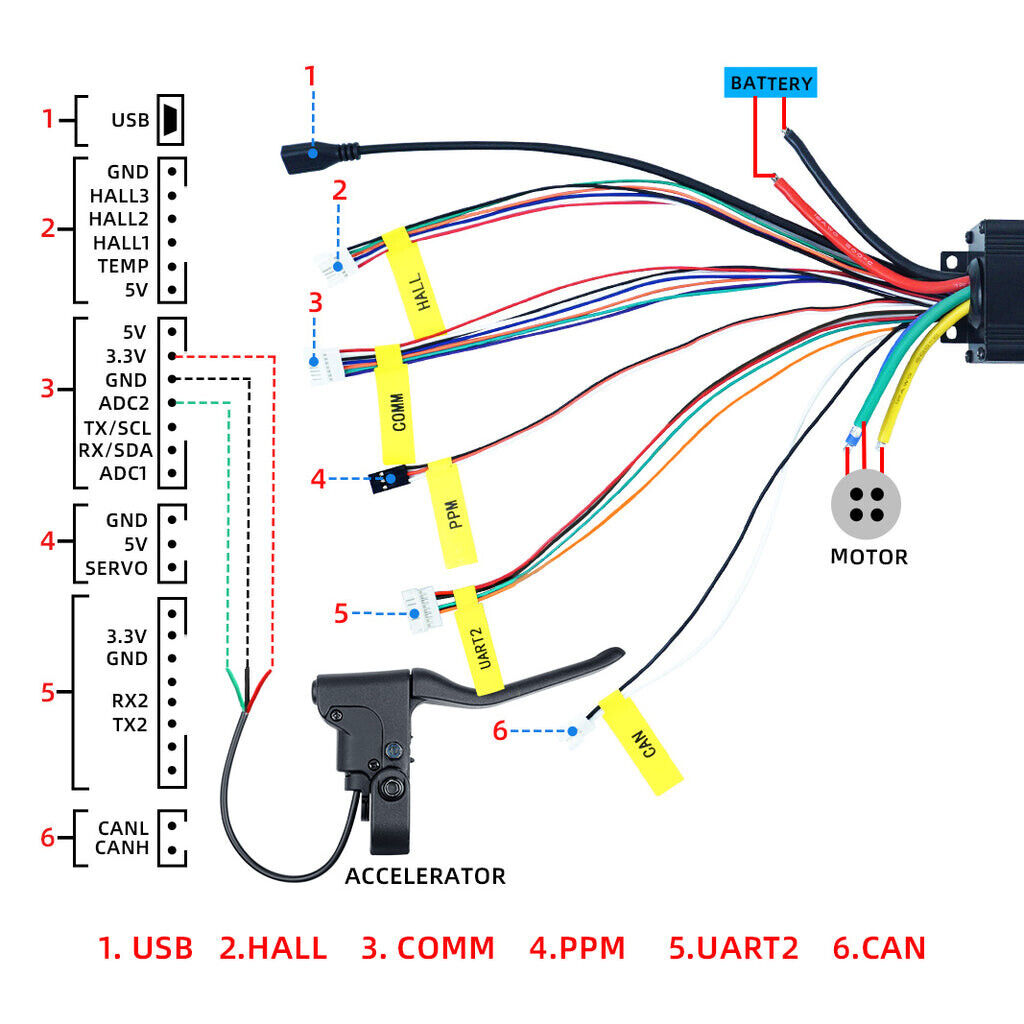

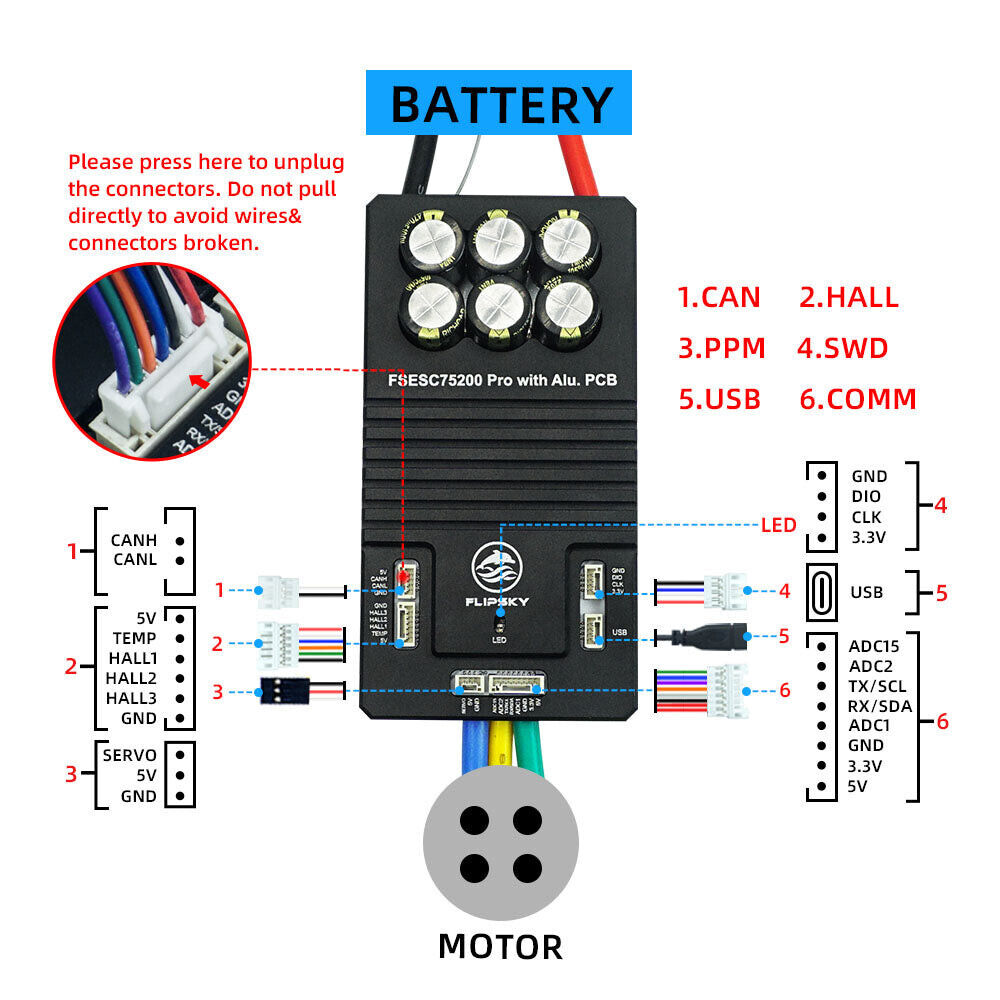

Communication Ports: USB, CAN, UART, SPI, IIC
Supported Sensors: ABI, HALL, AS5047, AS5048A
Input Source Support: PPM, ADC, NRF, UART
Supported Sensorless: Yes
Regenerative capacity: Yes
Programmable via VESC_TOOL: Yes

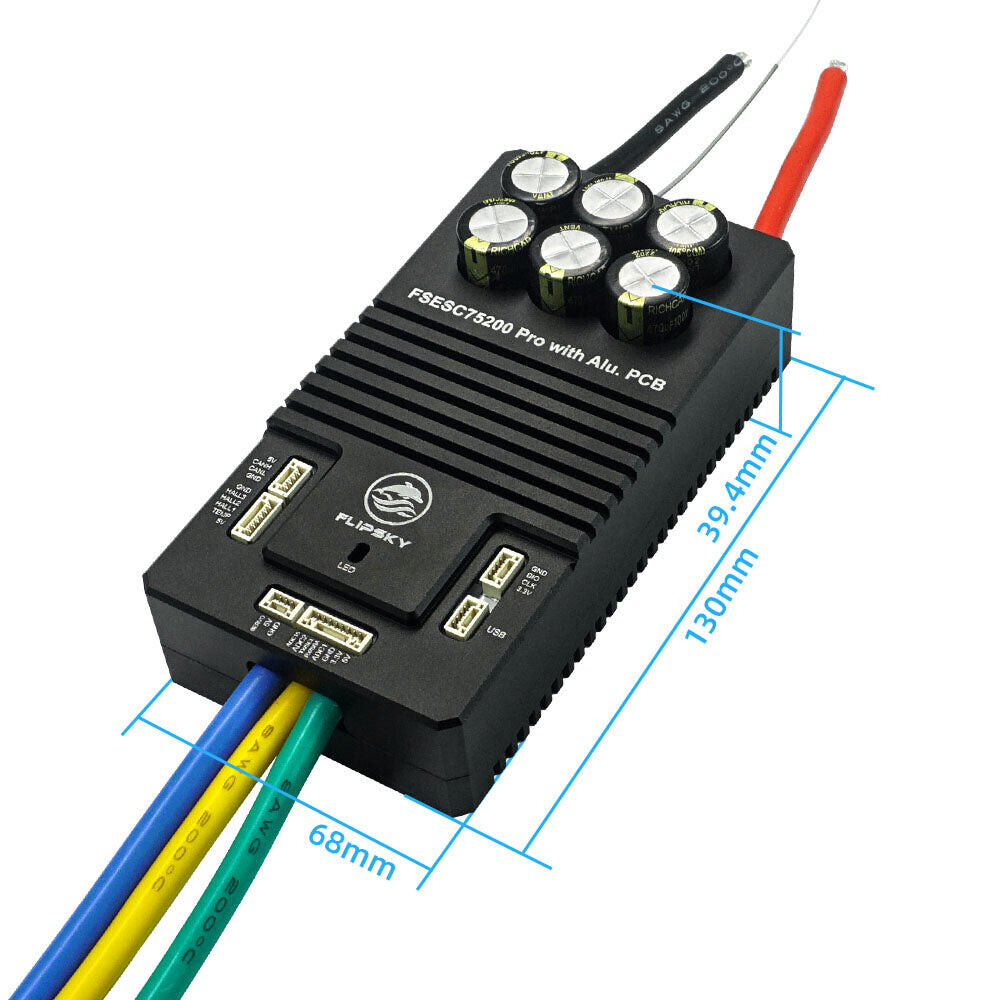

75200 Pro Size:130x67.7x39..4mm
Motor/power wire size: 8 AWG
Features:
1. 75200 aluminum substrate single drive: MOS tube temperature detection is abnormal (minimum display temperature at low temperature is about 30°C) 2. 75200Pro aluminum substrate single drive: MOS tube temperature detection is normal (hardware has been optimized for the problem that the minimum display temperature is about 30°C at low temperature)
3. 75200 aluminum substrate single drive: support dual serial port function 4. 75200Pro aluminum substrate single drive: supports single serial port function, and integrates Bluetooth module function (convenient to connect Bluetooth parameters and read data in real time)
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
