Flipsky Anti Spark Switch Smart Enhanced 300A for Electric Skateboard /Ebike/ Scooter/Robots

Spec:

• Hardware: V2.0

• Voltage: 12V-84V (3-20S)

• Continuous Current: 100A.

• Max Current: 160A(It is better to increase bigger heat sink)

• Peak current:1000A(theoretical value)

• LED button diameter:16mm/12mm

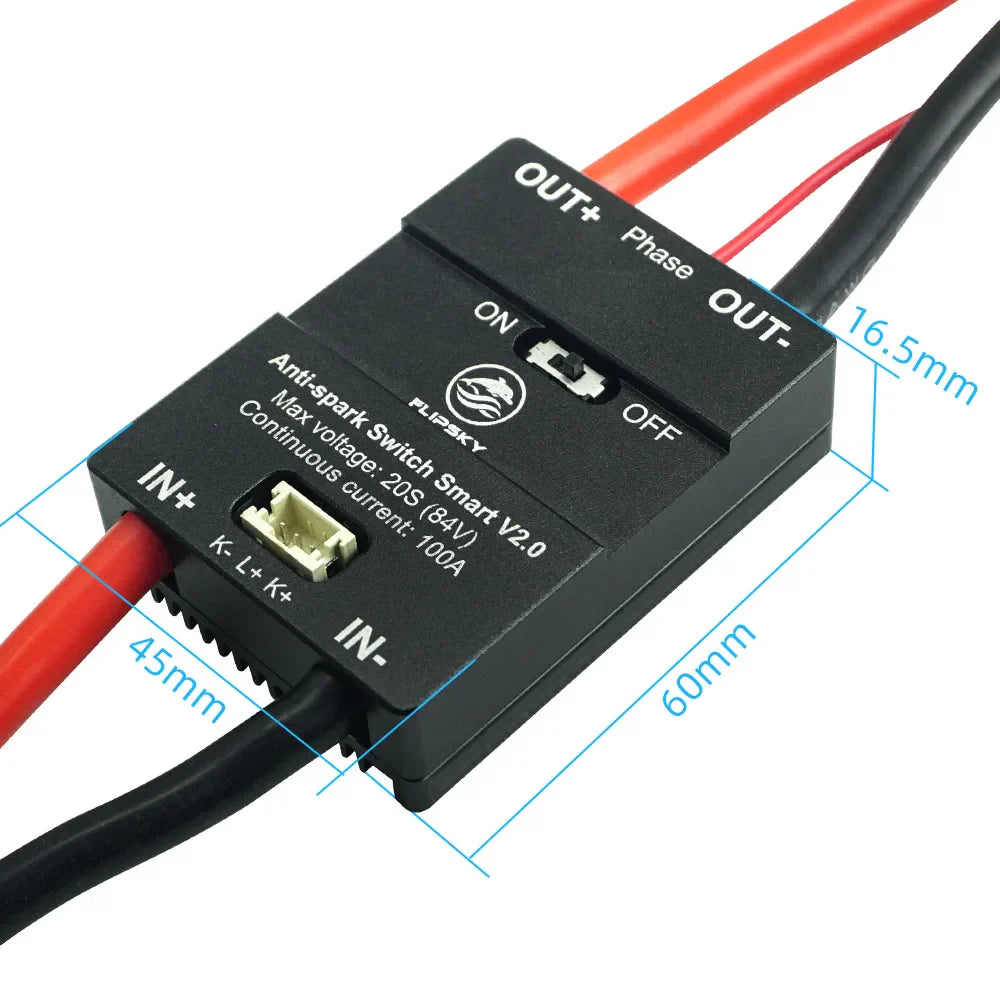

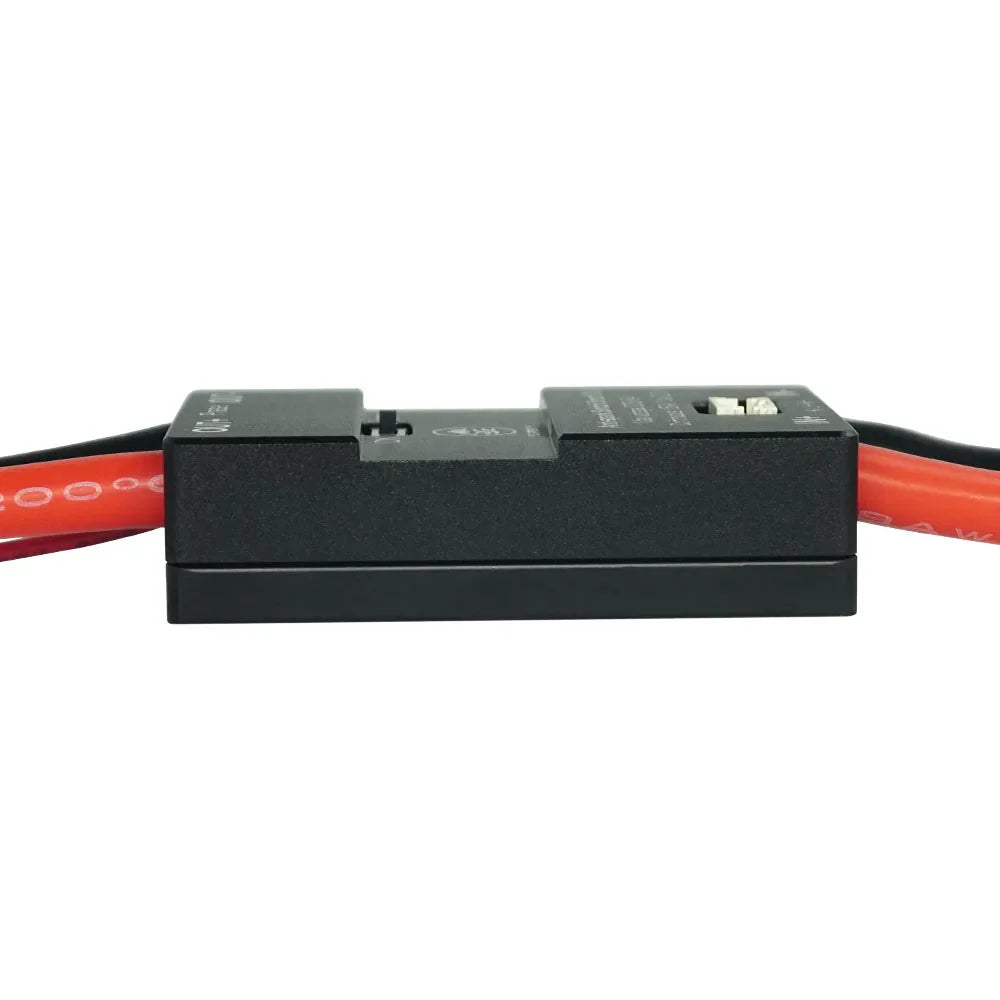

• Dimensions:60*45*16.5mm

Features:

• MOS model: HYG015N10NS1TA

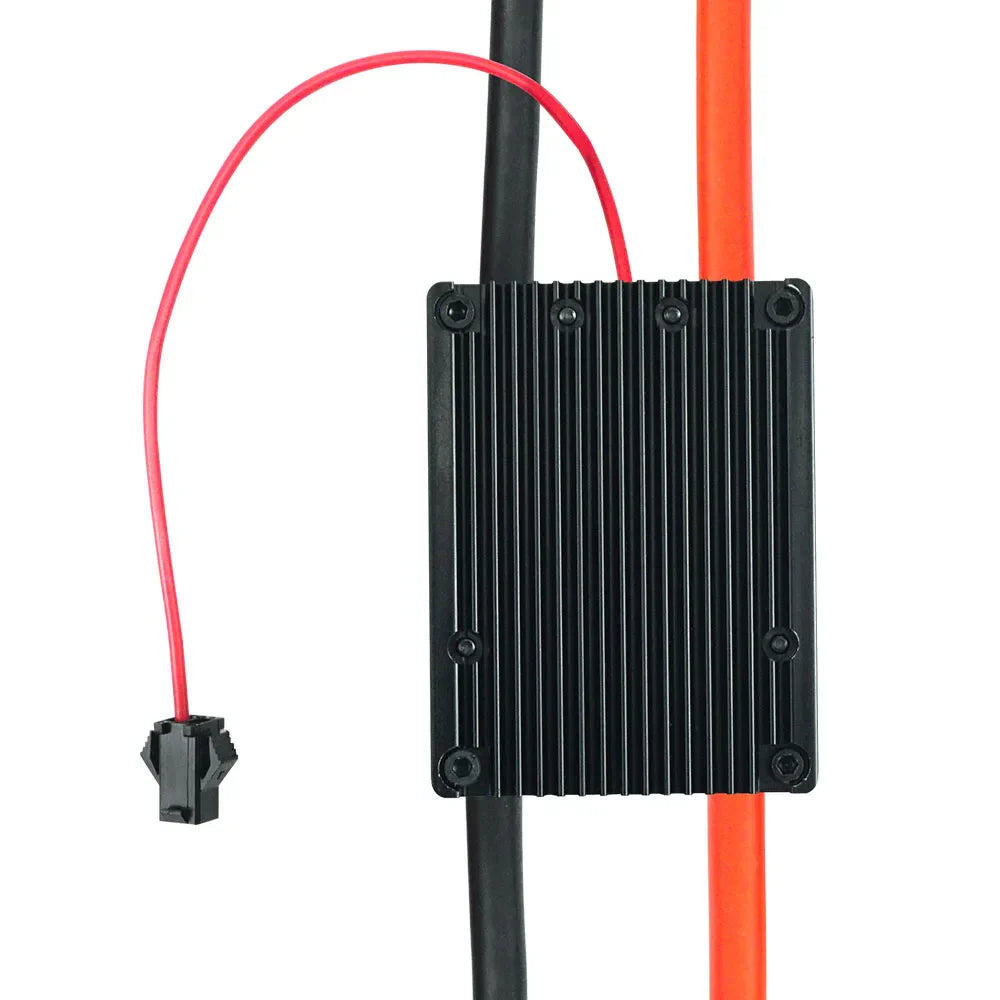

• Metal shell increases heat dissipation and prolongs life

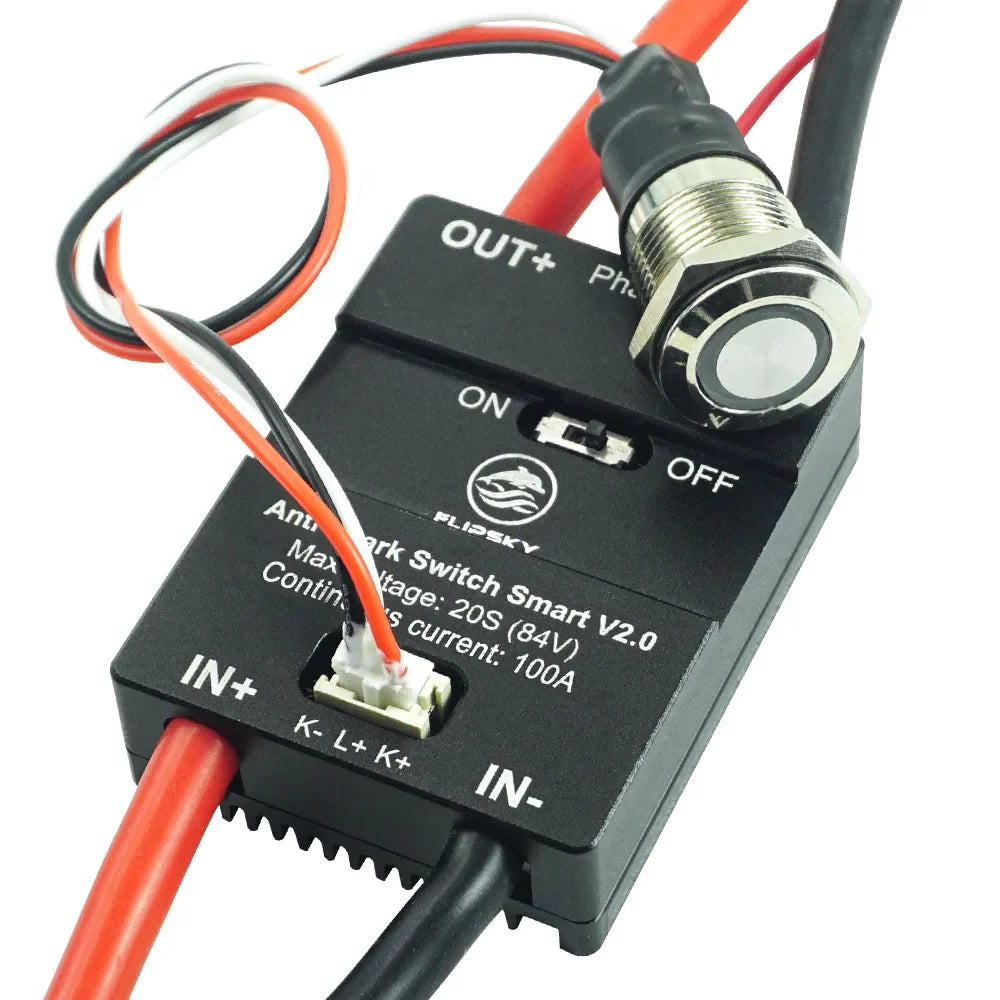

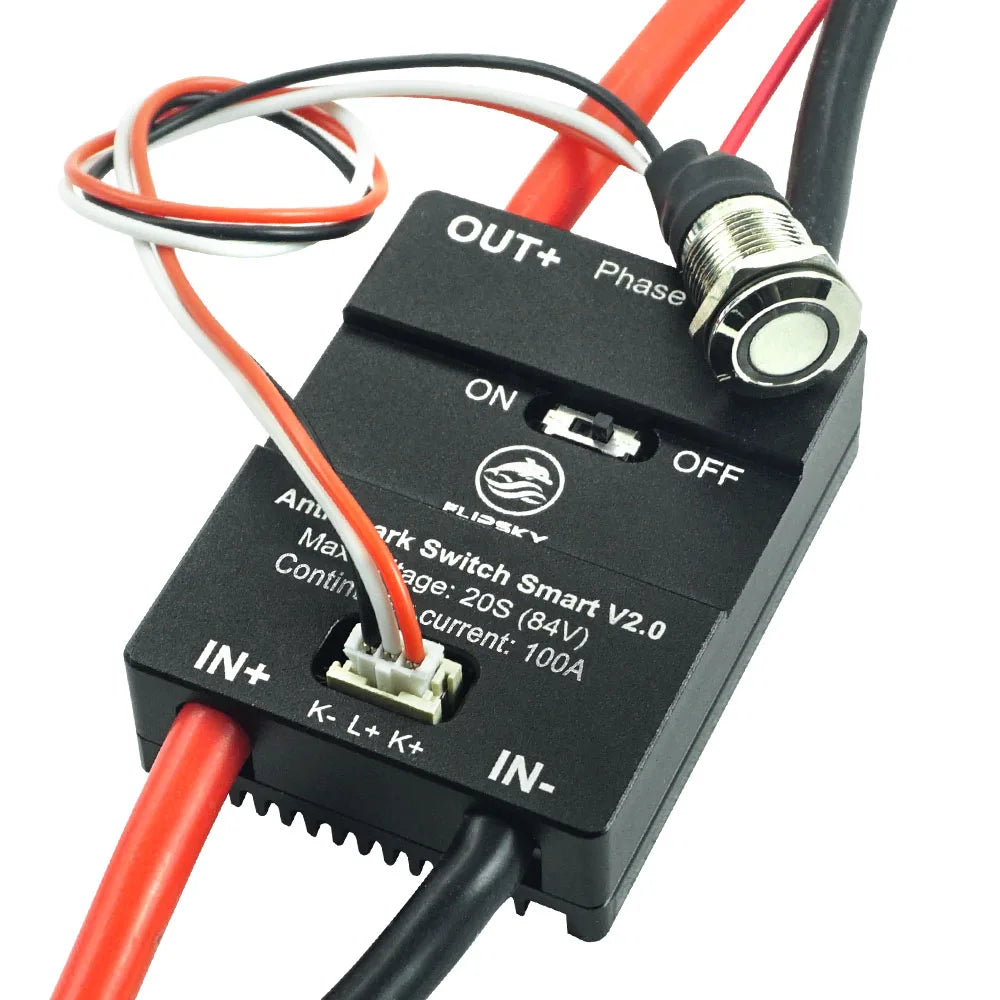

• Self-reset switch with LED button Diameter: 16mm/12mm (12mm or 16mm diameter reset switch can be freely selected)

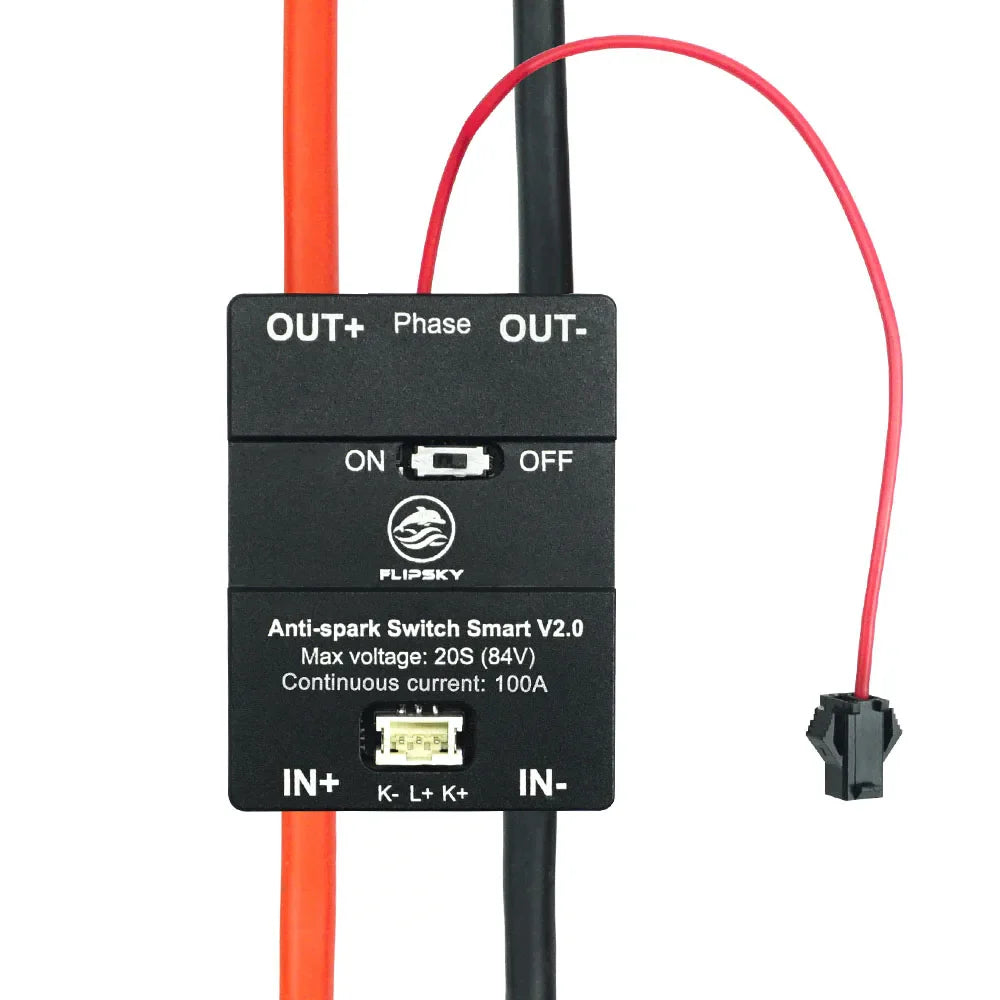

• The smart switch mode can be switched freely (turn the toggle switch to "ON" to turn on the smart switch mode; turn the toggle switch to "OFF" to turn off the smart switch mode)

• Smart switch mode: slide to turn on, the skateboard will automatically turn off after 5 minutes of static

• Support momentary button function: press and hold for 0.3s to turn on, 1s to turn off; press and hold it to cycle on and then off

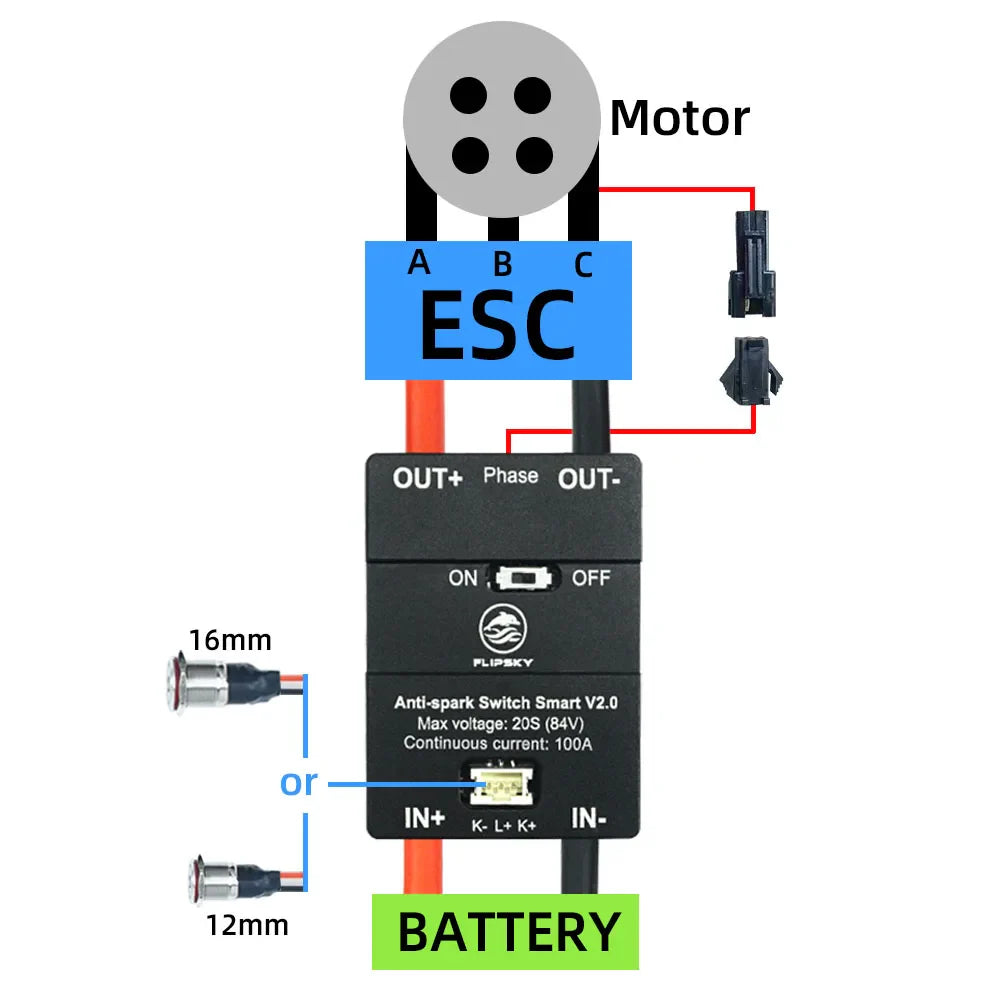

 Wiring diagram：
