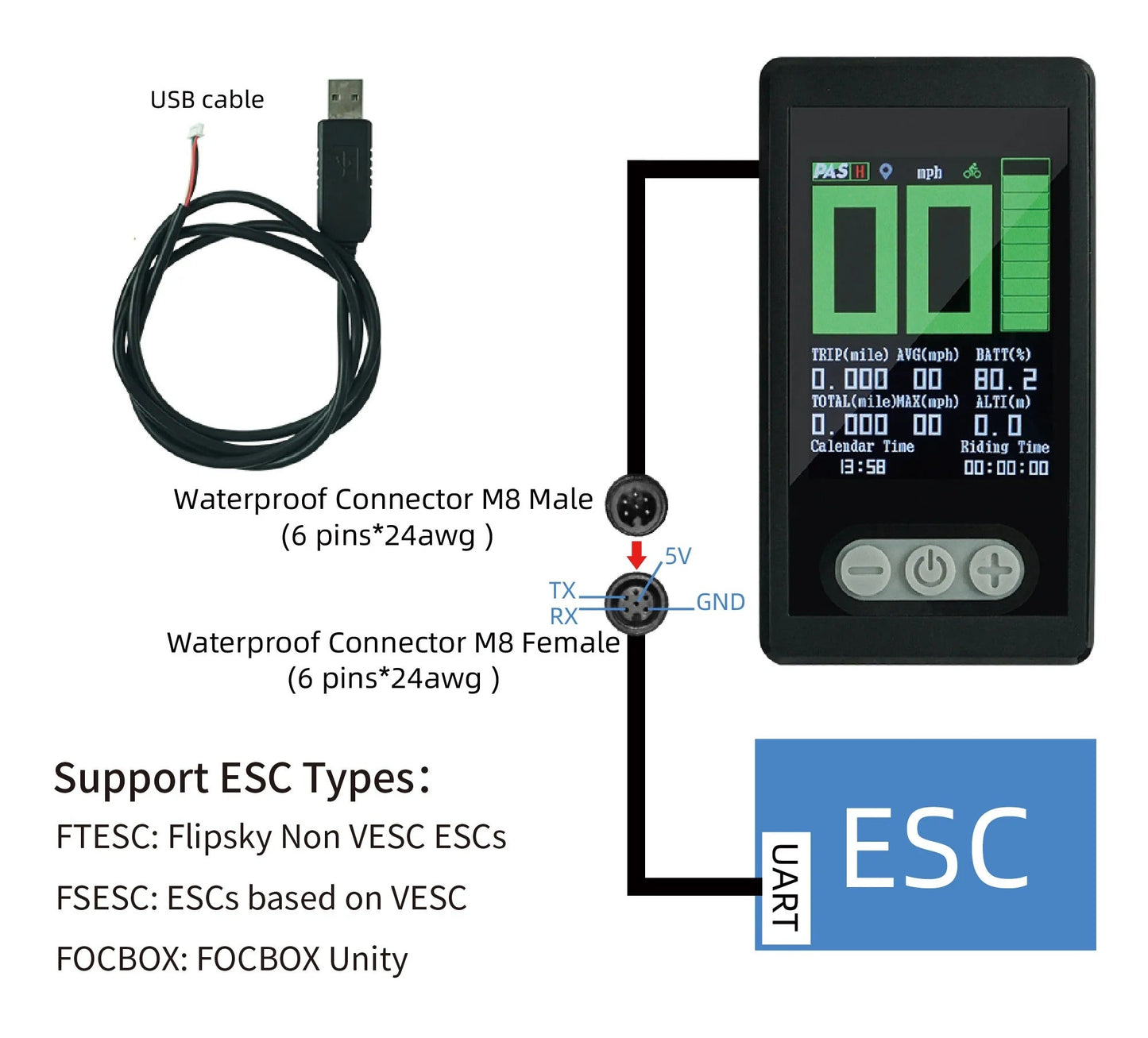

Support ESC Types:

FTESC: Flipsky Non VESC ESCs

FSESC: ESCs based on VESC

FOCBOX: FOCBOX Unity

Specification:

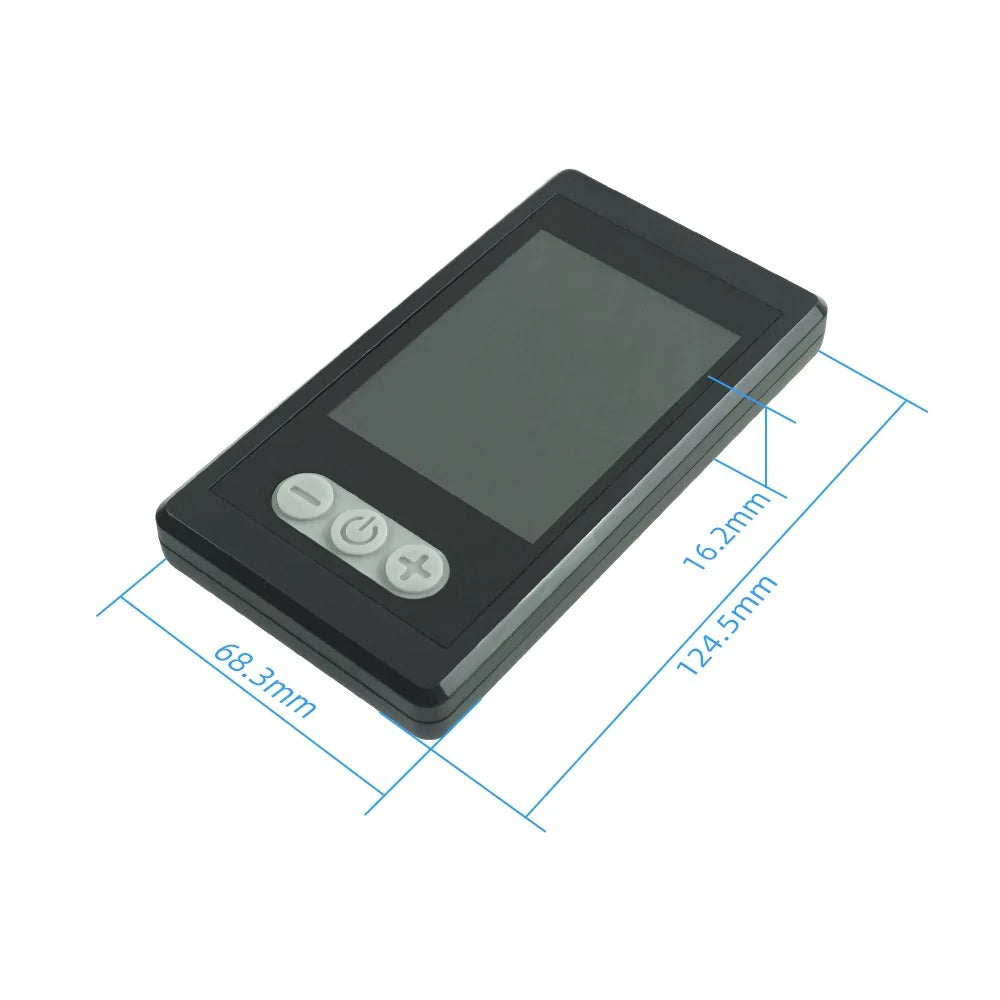

Dimension: L*W*H (mm): 124.4*68.1*18.5(mm)

Display Size: 3.2 “

Display Type: TFT

Display Color: RGB

Display Image Resolution: 240*320

Voltage/Current: 5V/500mA

Working Temperature: -20℃～+70℃

Storage Temperature: -30℃～+70℃

IP Rate: IP65

Weight: 116g

Communication Mode: UART

Product Common basic operations:



• Gear switch: In the main interface, short press the plus key to switch gears;

• Parameter description: The gear switch function is only applicable to the PAS mode of the "FTESC" electronic adjustment type. PAS mode: 0 gear

• The speed is zero, and other different gears can control different speeds. The higher the gear, the faster the speed.

• Data display: In the main interface, short press the minus key to enter the All data interface; short press the minus key again to return to the main interface.

• Riding mode: In the main interface, double-click the minus key to enter the riding mode; double-click again to end the current riding record.

• Riding record: In the main interface, long press the plus key to enter the riding record interface; long press the plus key again to exit;

• If you want to clear the riding record, long press the minus key.

• Parameter setting: In the main interface, long press the minus key to enter the parameter setting interface; long press the minus key again to return to the main interface.
