FLIPSKY FT85BS 84V 40A ESC With Aluminum Case eBike eScooter Speed Controller

FT85BS is NON VESC design and supports Flipsky esc tool and VX4 remote control programming.

Specs:

• Firmware: V1.0, supporting update via Flipsky ESC Tool

• Voltage: 14-84V(safe for 4-20S)

• Continuous current: 50V/60A; 75V/50A; 84V/40A (Values depend on the mounting, ambient

• temperature and air/water circulation around the device!); Peak Current: 250A

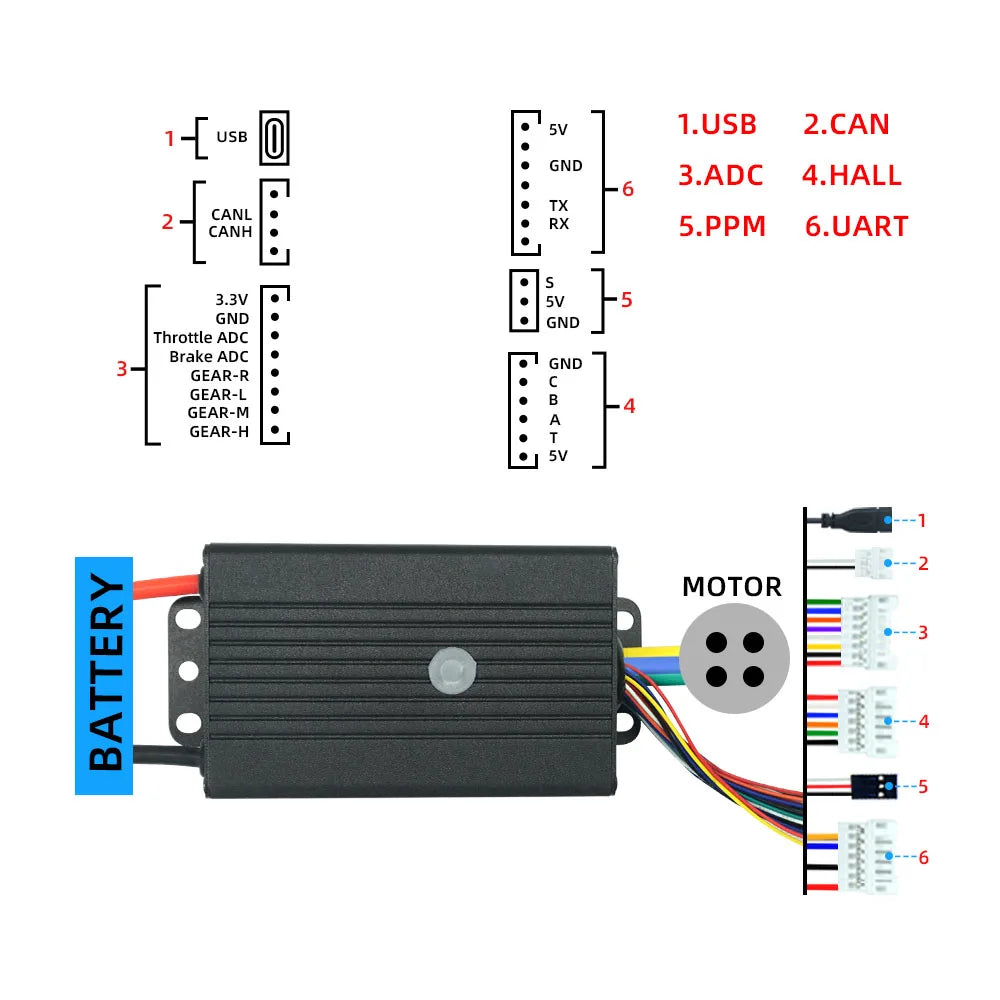

• Communication Ports: USB, CAN, UART

• Input Signal Support: PPM, UART(compatible with FLIPSKY remote VX4 only), ADC

• BEC: 5V@1A

• Multiple Speed Gear levels: Low, Medium, High, Reverse

• Motor/power wire size: 12 AWG

• Programmable: Yes

• Regenerative Capacity: Yes

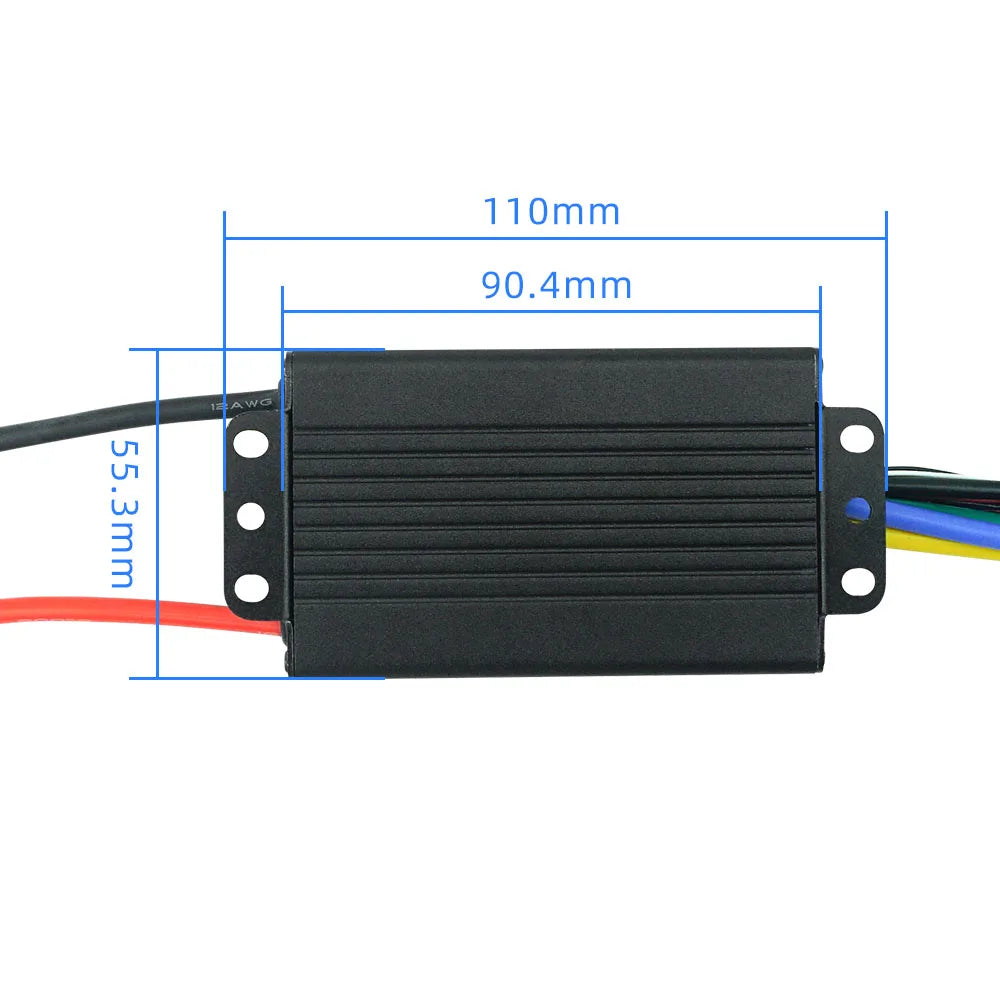

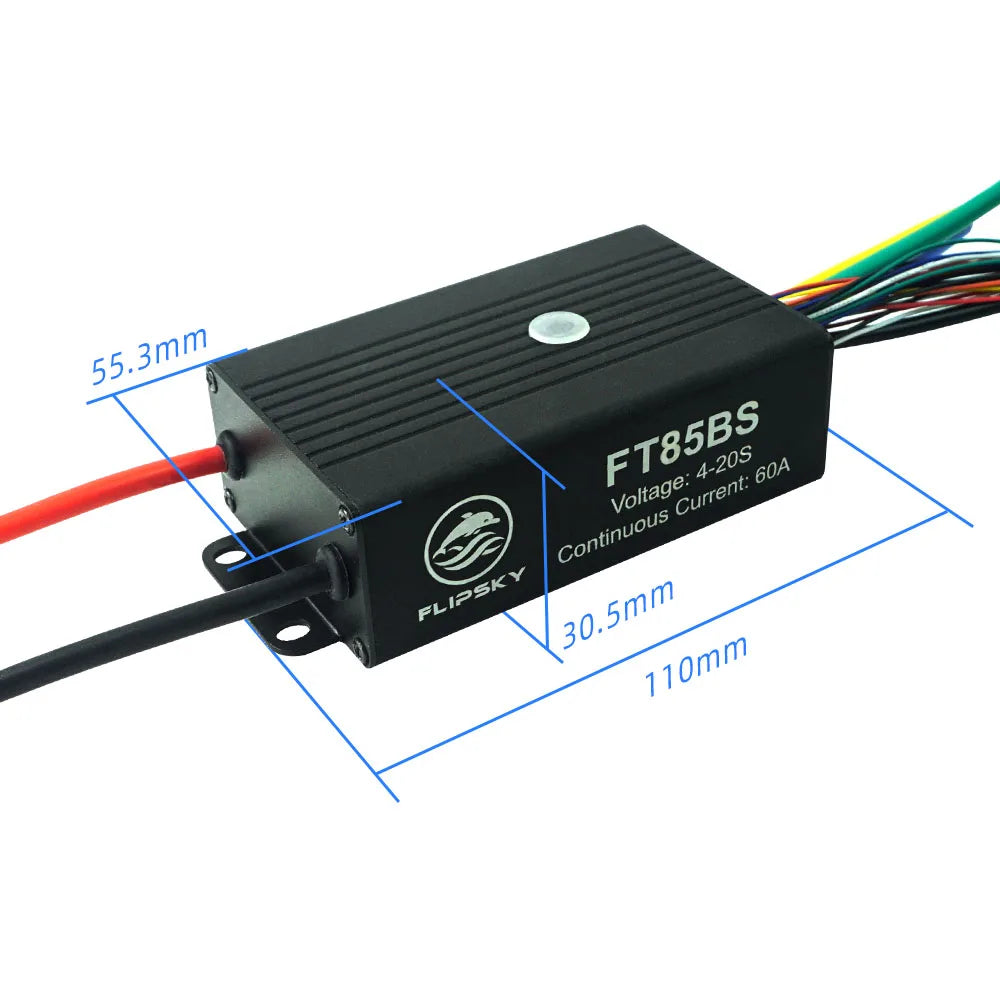

• Size: L110.5*W55*H30mm(Including Alu. Case)

Features:

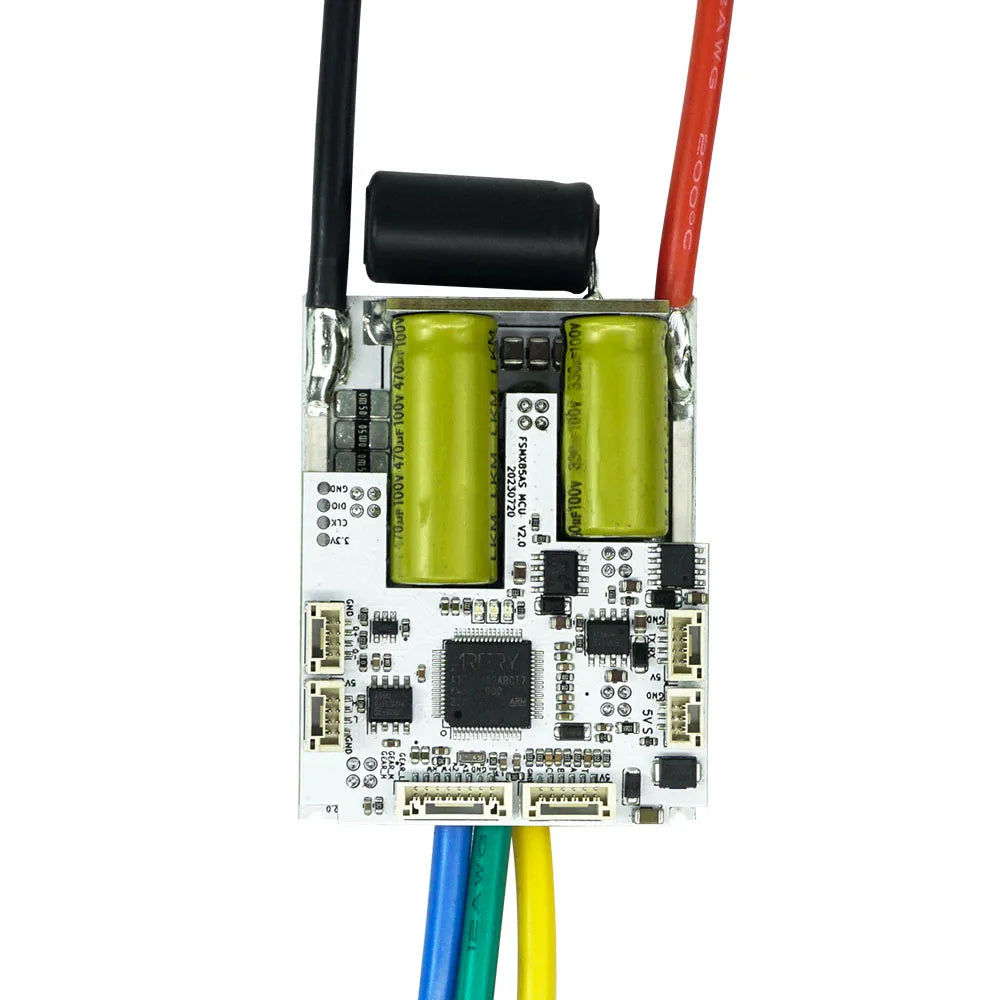

• Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed

• 240MHz and the max PWM switching frequency 45KHz, which improves the motor RPM.

• Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery

• voltages and many control ways.

• Programmable via Flipsky VX4 remote(Firmware Version:VX4_V1.2)

• Supporting FOC with low working noise and smooth starting.

• Supporting Real-time data and fault alerts.

• Supporting adaptive variable PWM frequency control.

• Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).

• Supporting control types: Current, Duty Cycle

• Protection functions: low and high voltage protection, over-current protection, temperature

• abnormally protection, mosfets over-temperature and over current protection, battery over

• discharge protecting, motor over-temperature protection.
