Flipsky Mini FSESC6.7 70A ESC base on VESC6.6 with Aluminum Anodized Heat Sink

Specs:

• Firmware: Latest Version

• Amps: 70A continuous,instantaneous current 200A

• Voltage: 8V-60V(Cells: 4-13S LiPo,Safe for 4S to 12S LiPo，Voltage spikes may not exceed 60V! )

• BEC: 5V@1A

• EPRM: 150000

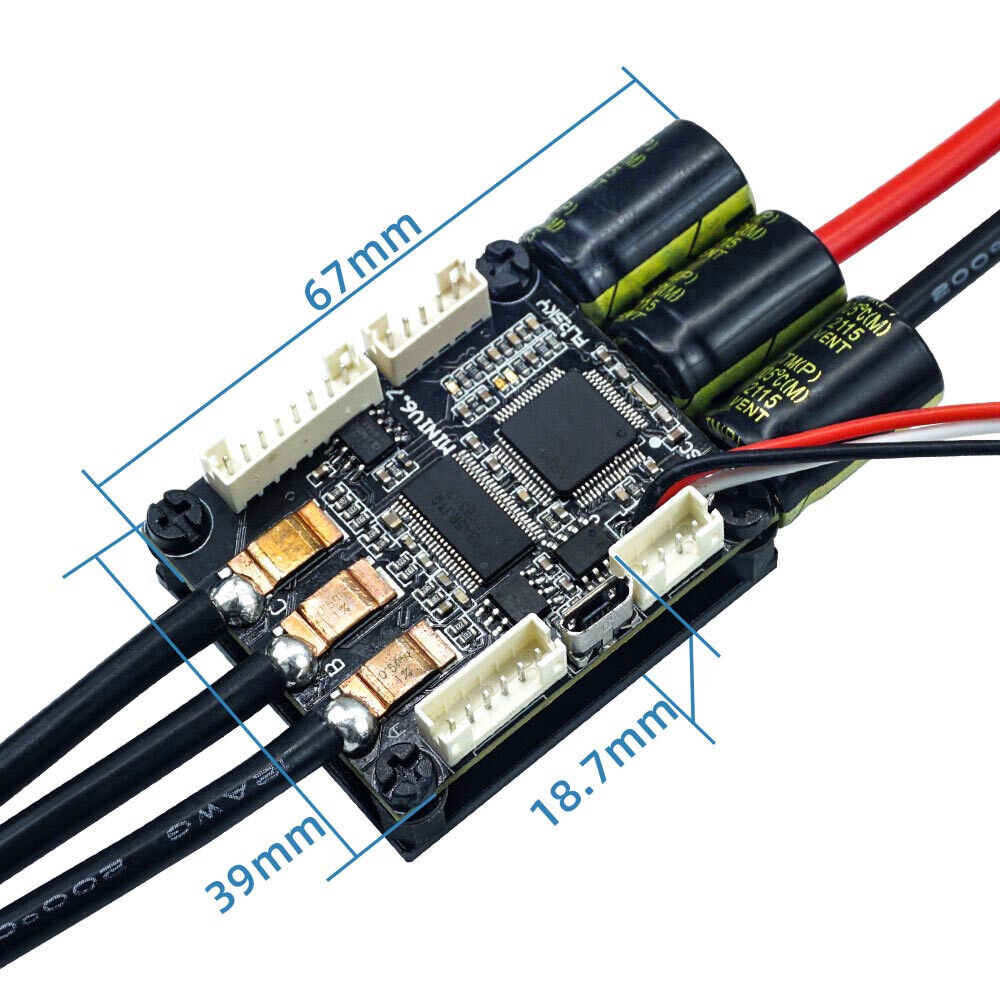

• Size:67x39x18.7mm(Include Heatsink)

• Motor wire: 12AWG

• Power cable:12AWG

Feature:

• Support BLDC square wave mode control and FOC sine wave mode.
• Support USB online firmware update;
• Support three control mode: Current/Duty cycle/Speed control/Position control mode
• Using 6 NVMFS5C612NL high current MOS transistors, the parameter is 60V/235A;
• Support with Hall(ABI, HALL, AS5047, AS5048A) and sensorless Hall;
• Adjustable protection measures: low input voltage/high input voltage/large motor current/high input current/over-temperature protection (MOSFET and motor);
• Support control communication methods: PPM, ADC, NRF, UART;

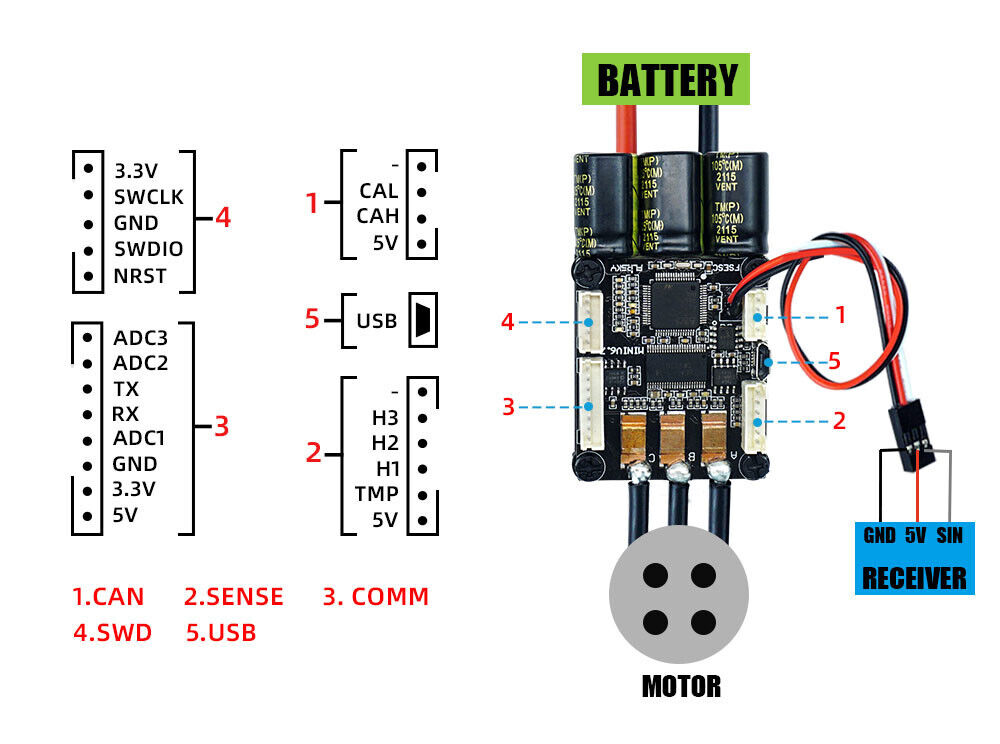

• Communication ports: USB, CAN, UART, SPI, IIC;
• Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160;
• High regenerative braking current (separate limit for motor and input), high RPM (different limit for each direction), nearly one hundred setting parameters can be changed through the USB port using the host computer software VESC_TOOL and kept in the ESC;
• The digital VCC and analog VCC are generated by different voltage regulators, which makes the system's AD conversion more accurate;
• Aluminum alloy heat sink increases heat dissipation effect and prolongs life.
