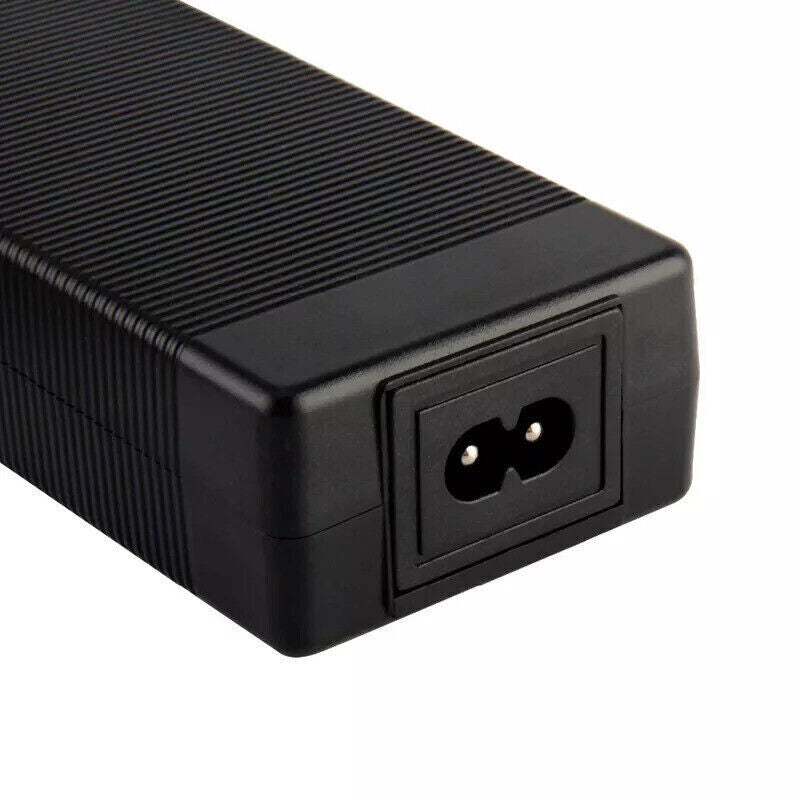

GX16 36V 2A Lead Acid Battery Charger 41.4V for Electric Wheelchair Scooter

GX16 36V 2A Lead Acid Battery Charger 41.4V for Electric Wheelchair Scooter

Use and maintenance of the charger:

1. When charging, first connector to the battery, then connect to AC; after full, cut off AC, then pull the battery plug. If you pull the battery plug first while charging, especially when the charging current is large (red light), it is very easy to damage the charger.

2. When the LED light turns green, please continue charging for 2-3 hours.

3. Please do not run out of battery power, then charger. Otherwise the battery cannot be protected or even damaged.

4. long-term shallow discharge battery, about 3 months, for a deep discharge, is the so-called re-lighting, which is conducive to the activation of long-term immobile material in the deep part of the battery. Luminous means that riding the controller battery undervoltage protection action.

5.Please use the charger in a dry place in time.

6.When you do not use the charger, do not always connect the power supply.

Specifications:

- Application: lead acid battery Standard voltage is 36V-43.2V(full)

- 100% Brand New and high quality Super strong protection.

- lnput: 100-240VAC,50/60Hz

- Output: 36V 2A

- Charge indicator: Red is charging, Green is full.

- Security protection: OVP/OCP/ Overload protection/ Short-circuit protection

- Color: Black

- Power Max: 84W

- Connector: GX16

- Plug: UK
