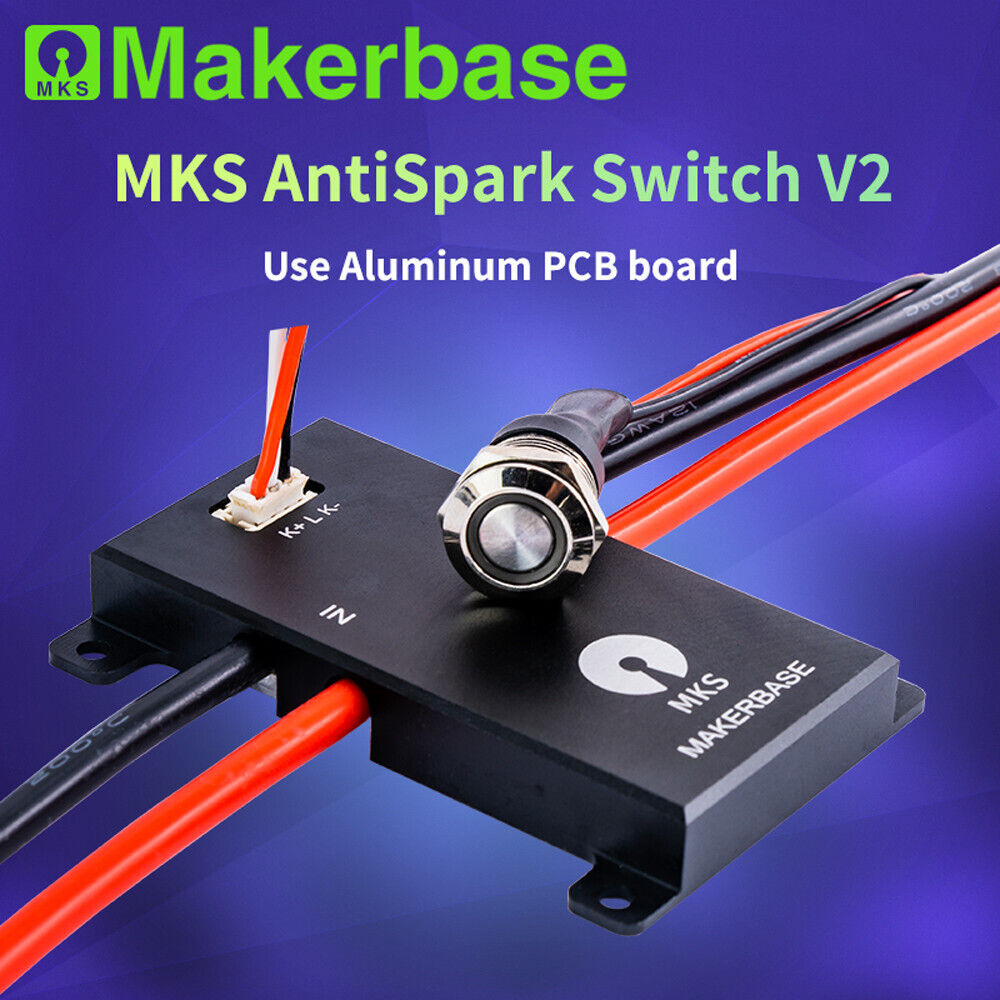

Makerbase AntiSpark Switch V2 Aluminum pcb board 300A MKS

Compared with the MKS AntiSpark Switch V1, the MKS AntiSpark Switch V2 has higher voltage and current, and is upgraded with an aluminum substrate. However, it retains the advantages of MKS AntiSpark Switch V1, which can safely protect the power contacts from being burned and oxidized by electric sparks, which can effectively prolong the life of electronic products.



Features:
1. Continuous Current: 80A, Max Current: 200A, Max voltage: 20S (90V, safe for 80V).

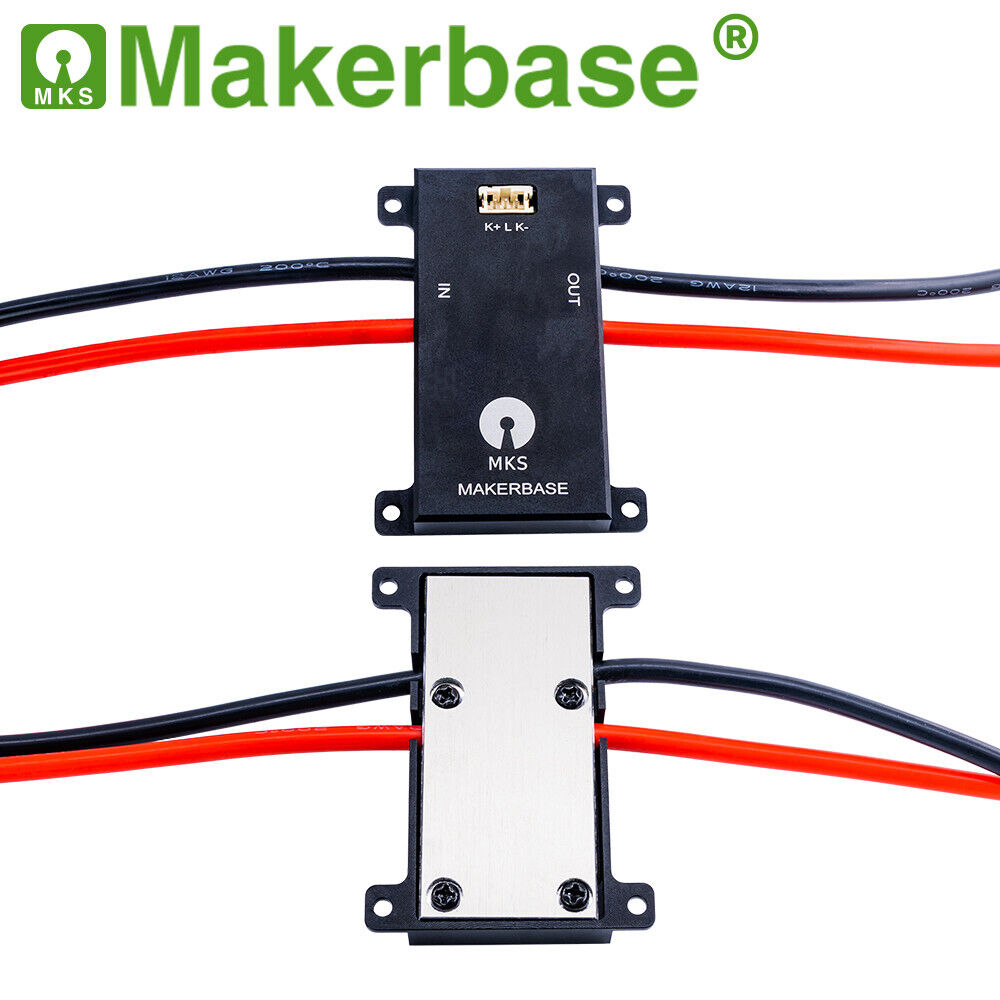

2. The use of aluminum heat sinks, with excellent thermal conductivity, handles heat diffusion extremely efficiently, thereby reducing module operating temperature, extending service life, and improving power density and reliability.
3. The PCB uses an aluminum substrate. Compared with the traditional FR-4, the aluminum substrate adopts the same thickness and the same line width, and the aluminum substrate can carry higher current..
4. The MOS tube adopts 4 pieces of HYG015N10NS1TA large package MOS tube, which has better overcurrent and heat dissipation performance.
5. Use T2 tinned copper strip (2mm thickness), with good overcurrent and heat dissipation performance.

Product parameter

Mainboard: MKS AntiSpark Switch V2
Continuous Current: 80A
Maximum Continuous Current: 200A
Maximum input voltage: 20S (90V)
LED button diameter: 12mm

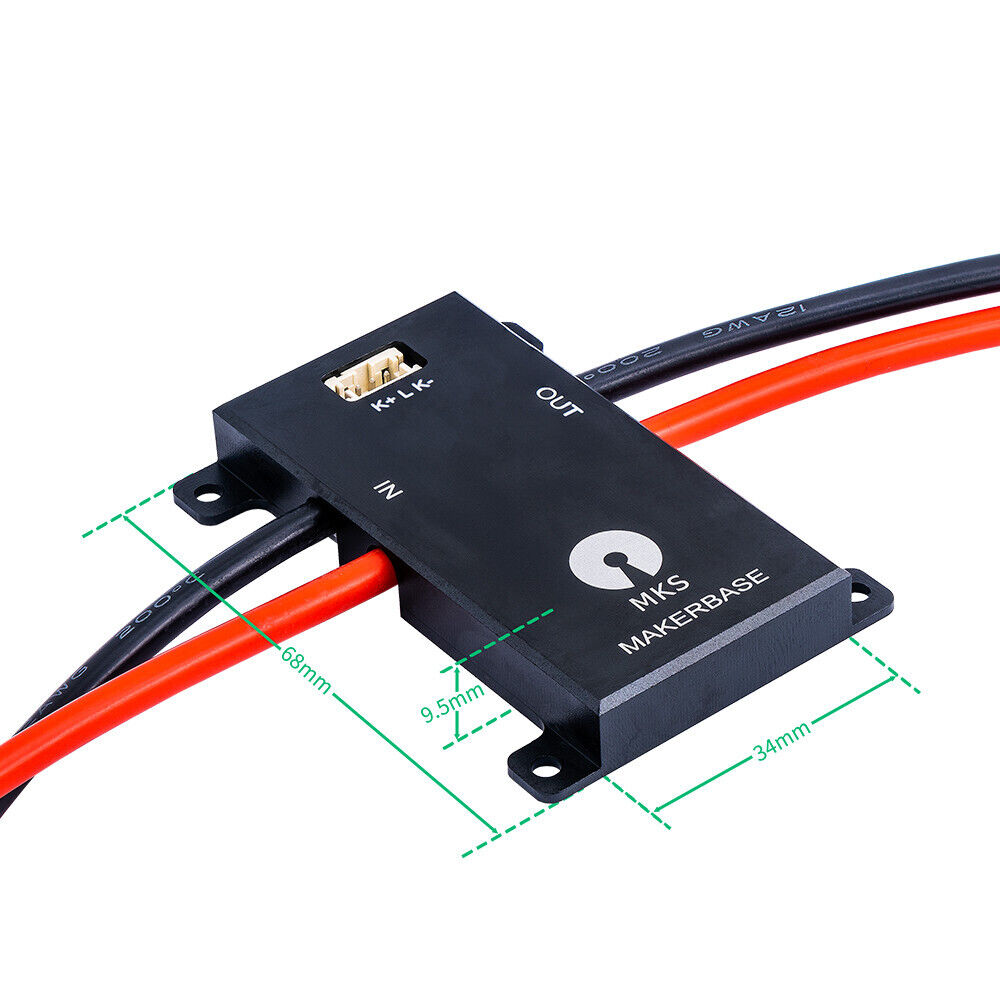

Shell size: Length 68.0mm x Width 34.0mm x Height 9.5mm
