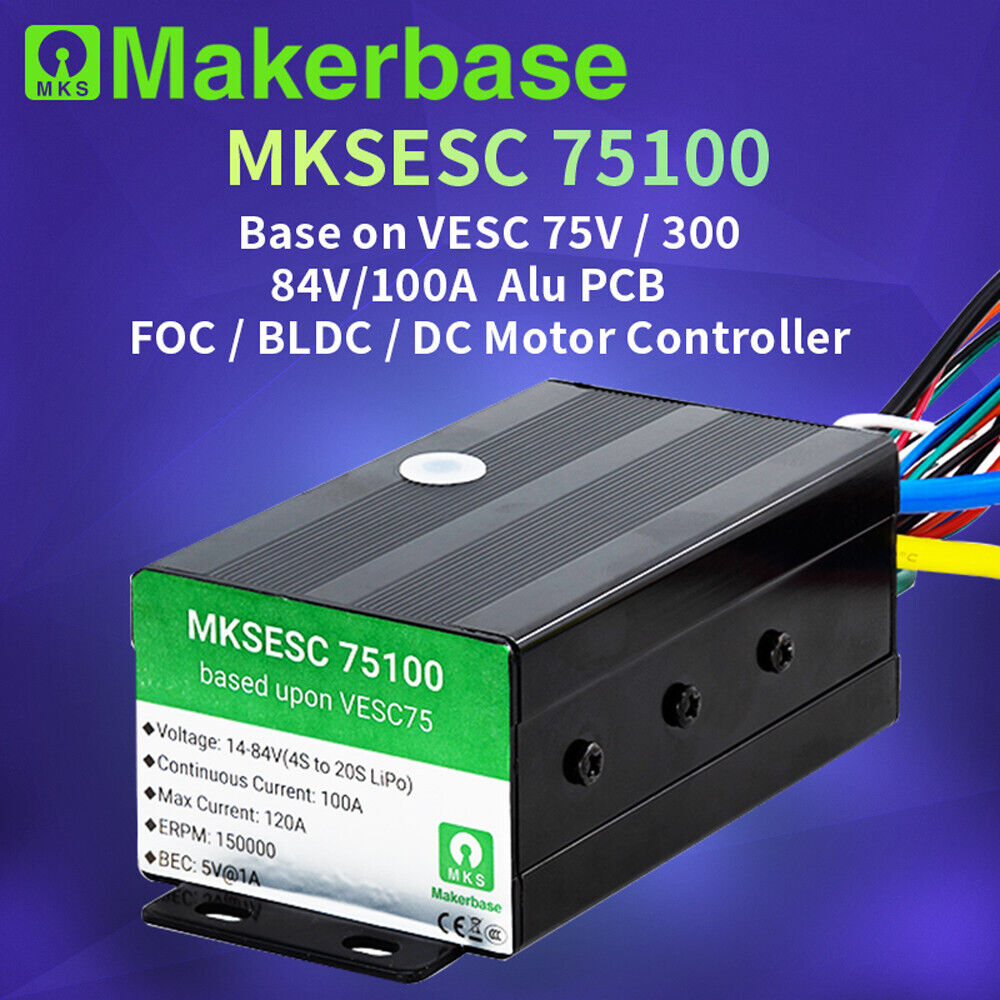

Makerbase VESC 75100 75V 100A ESC Based on VESC For Electric Skateboard/Scooter

The VESC75 series has larger voltage and current than VESC6 and VESC4. Like VESC6, it has three-phase splitter and adjustable current/voltage filter, which can detect any connected motor more accurately and reliably. The limit speed of MKSESC 75100 is up to 150000 ERPM.

Features:

1. Use ARM Cortex-M4 STM32F405RG processor with FPU floating point unit.
2. Continuous current up to 100A, maximum current 120A.
3. Limit speed of electric adjustment up to 150000 ERPM.
4. Built-in USB interface, VESC TOOL connection with PC device to complete all configuration.
5. With UART interface, it can communicate with Android mobile device through Bluetooth module to monitor and configure in real time.
6. Supports sensorless and sensorless operation.
7. Support a variety of control modes: duty cycle control, speed control and current control.
8. Support a variety of control motor interfaces: PPM signal (RC server), Analog, UART, 12C, USB and CAN bus.
9. It has excellent soft strategy, soft compensation strategy for current limit and soft backoff strategy for RPM restriction.

Parameter

Mainboard: MKSESC 75100
Microprocessor: STM32F405RGT6
MOSFET: MDP10N027TH
Voltage: DC 14V-84V (4S-20S)
Working Current: 100A
Peak Current: 120A
Motor Type: 3-phase BLDC motor
ERPM: 150000 ERPM
Sensor Type: ABI / HALL / AS5047 / Sensorless

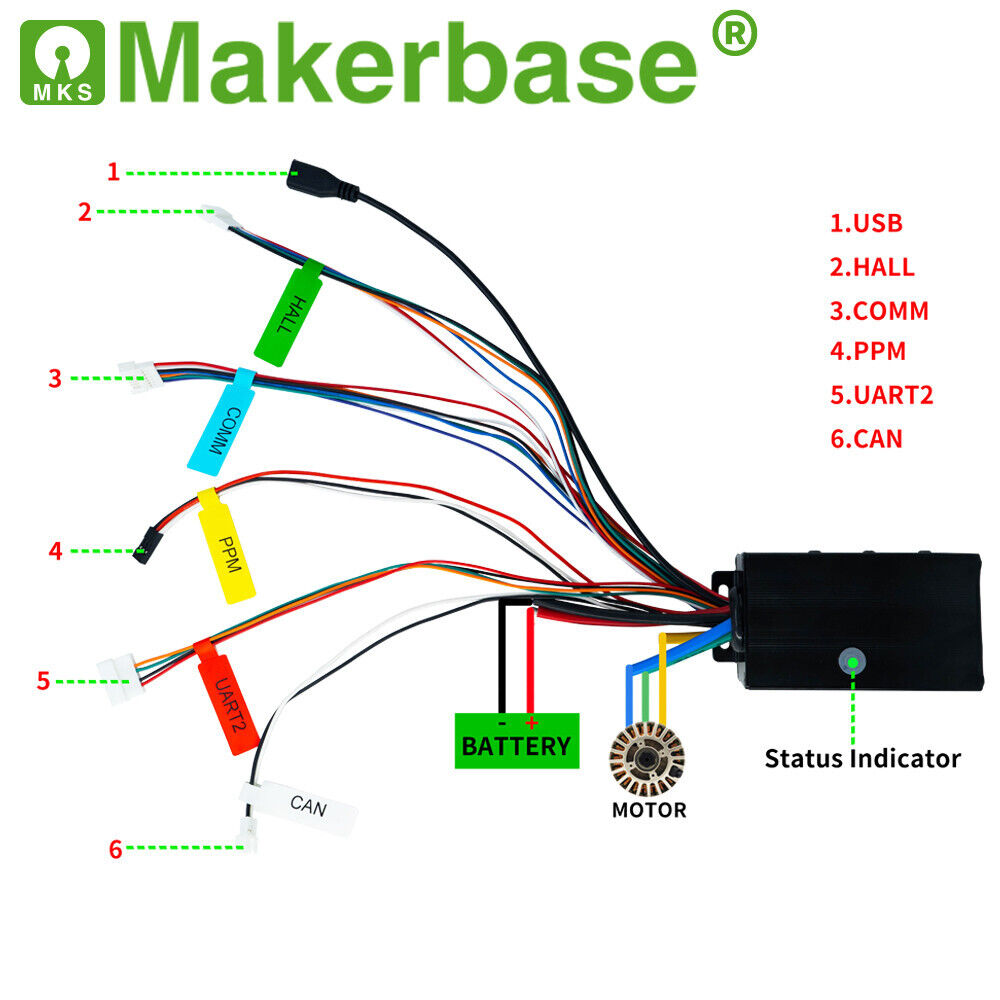

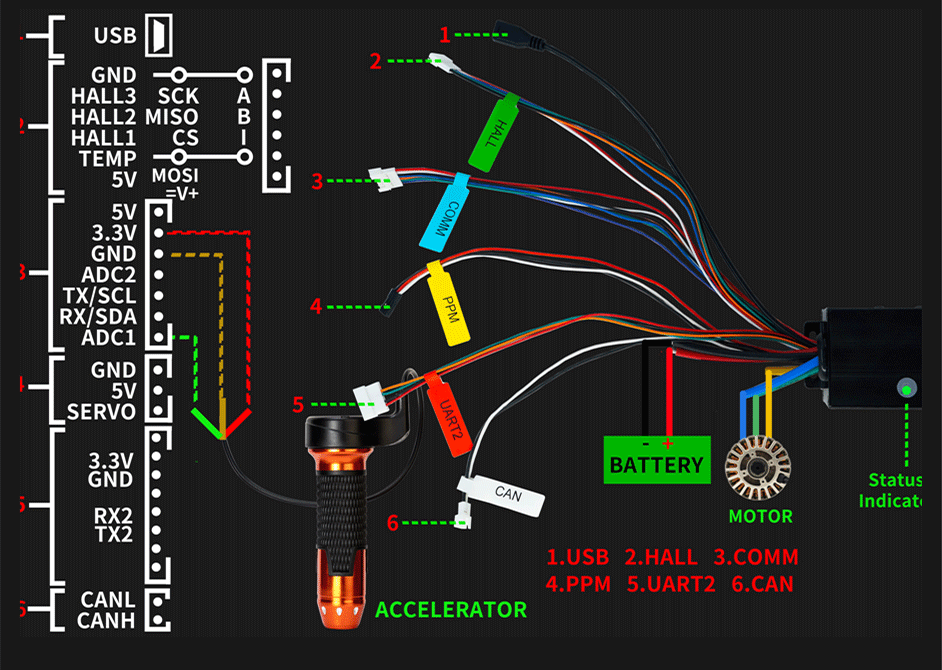

Communication Interface: PPM (RC Server)/Analog (ADC)/UART/I2C/USB/CAN
Control Model: Control modes such as duty cycle/speed/current
PCB Size: 76.0mm x 45.5mm x 1.6mm
Shell size: Length 85.3mm x Width 52.0mm x Height 38.0mm
