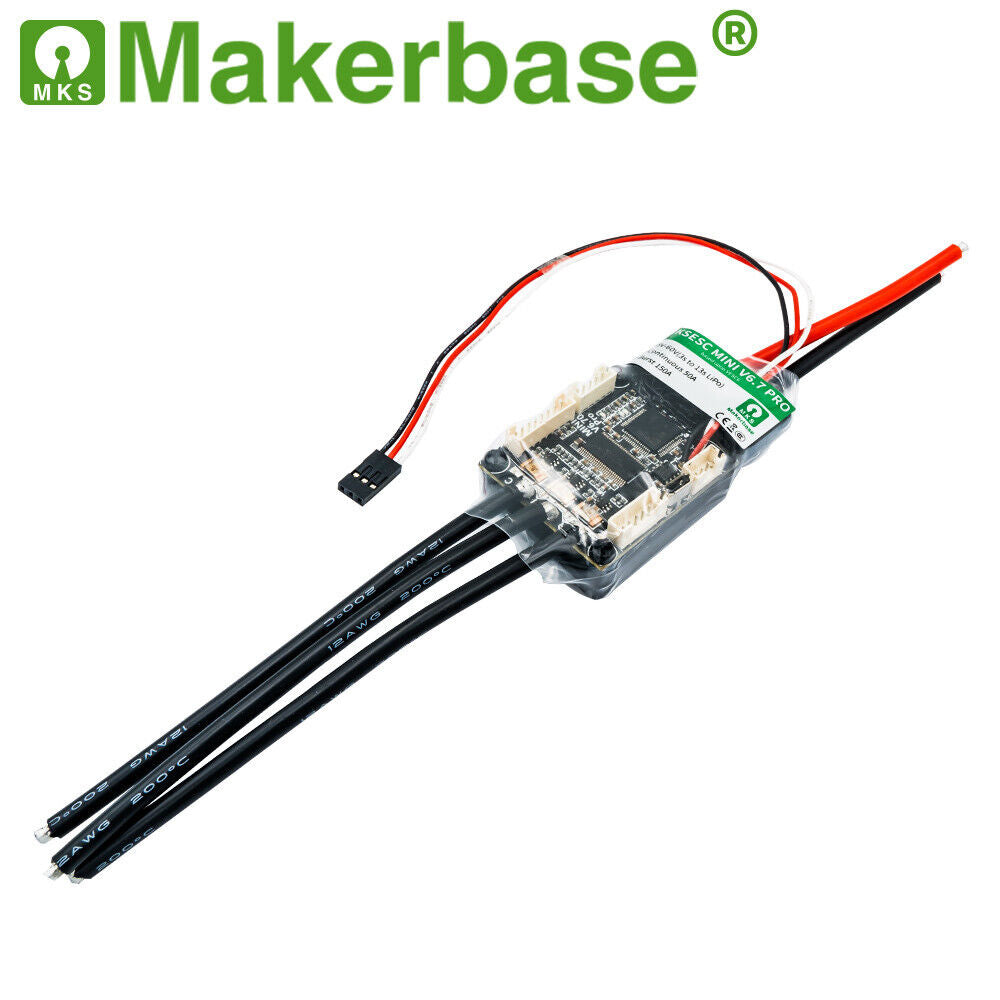

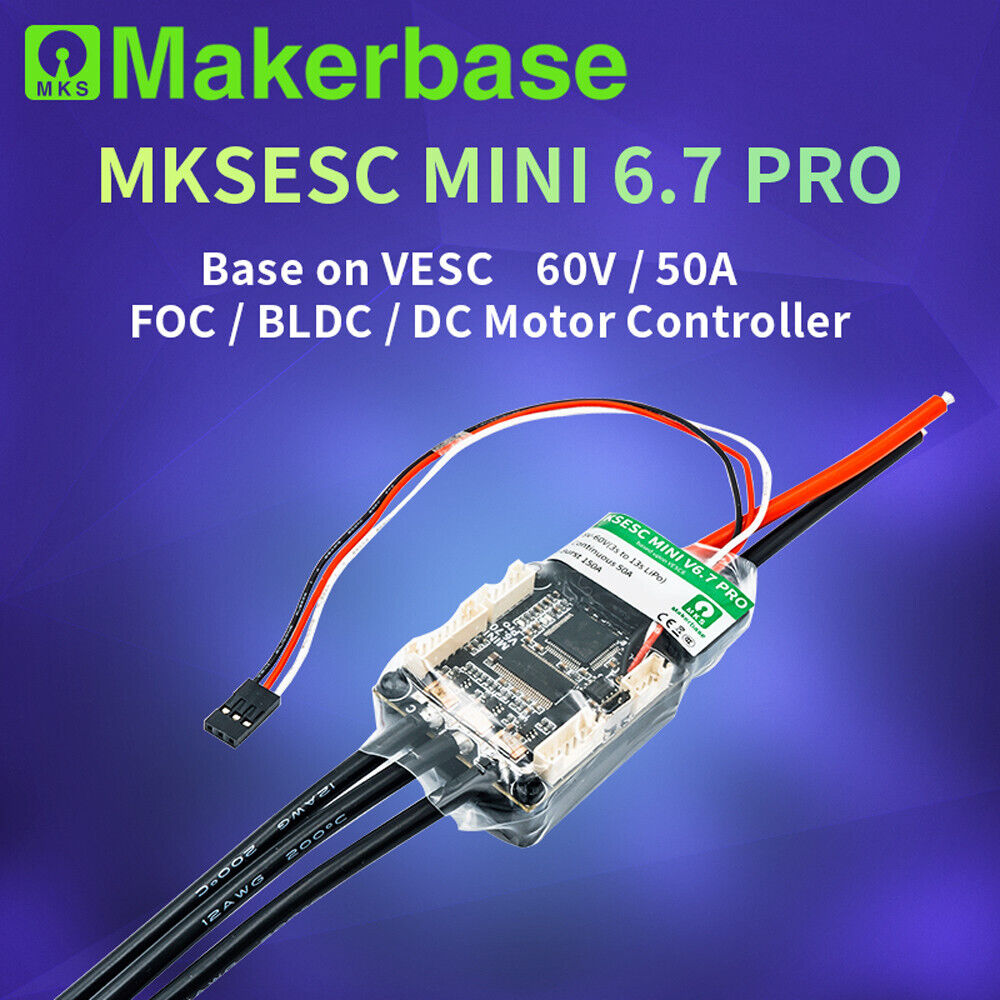

Makerbase VESC MINI V6.7 Pro ESC Electric Speed Controller 13S ESC Based on VESC

VESC6 Series is an upgraded version of VESC4 Series. VESC6 has a three-phase splitter and adjustable current/voltage filter to detect any connected motor more accurately and reliably. MKSESC MINI V6. 7 Fully compatible with VESC6, with the free VESC TOOL provided by VESC (including PC devices, Android mobile devices), after simple operation, almost all professional projects can be set up in a few minutes.
Features:
1. Use ARM Cortex-M4 STM32F405RG processor with FPU floating point unit.
2. Using NTMFS5C628NLT1G high quality MOS, the peak current can reach 240A, and the continuous current is about 50A.
3. With a USB interface and VESC TOOL connection to PC device, all configurations can be completed. 4. With UART interface, it can communicate with Android mobile device through Bluetooth module to monitor and configure in real time.
5. Supports sensorless and sensorless operation.
6. Support a variety of control modes: duty cycle control, speed control and current control.
7. Support a variety of control motor interfaces: PPM signal (RC server), Analog, UART, I2C, USB and CAN bus.
8. It has excellent soft strategy, soft compensation strategy for current limit and soft backoff strategy for RPM restriction.

Product Parameters

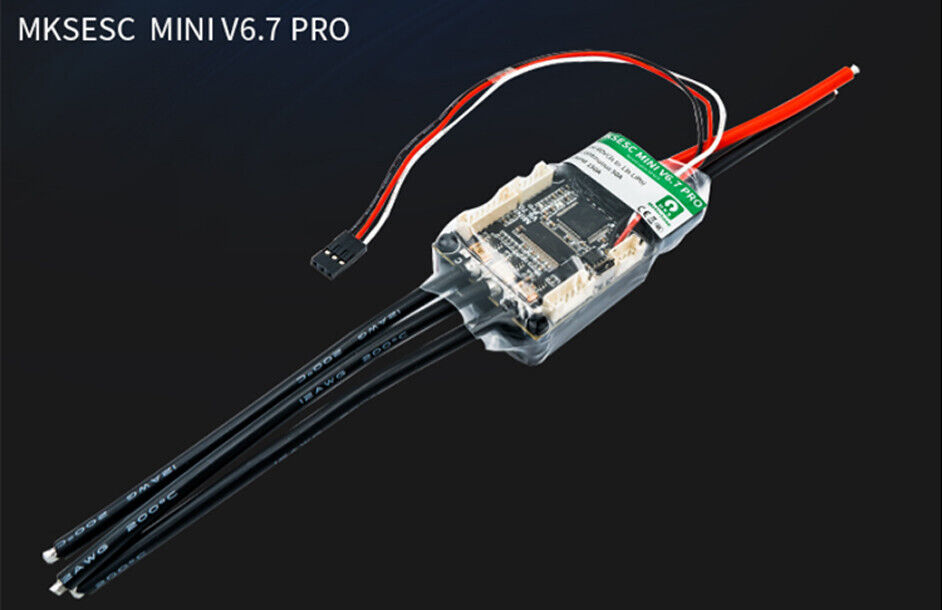

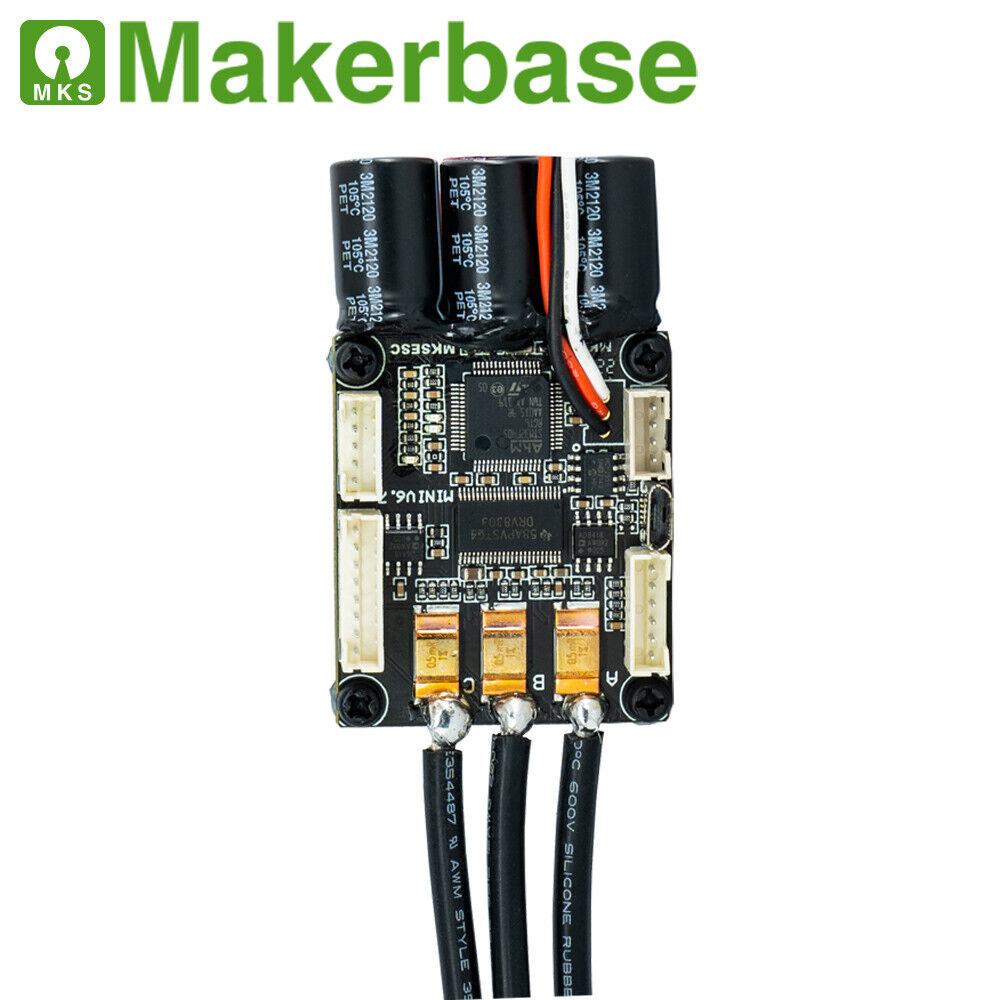

Mainboard: MKSESC MINI V6.7 PRO
Sampling chip: INA181A1
PCB copper thickness: 3oz
Working current: 50A(Thickened copper thickness, long working time with high current)
Peak Current: 240A

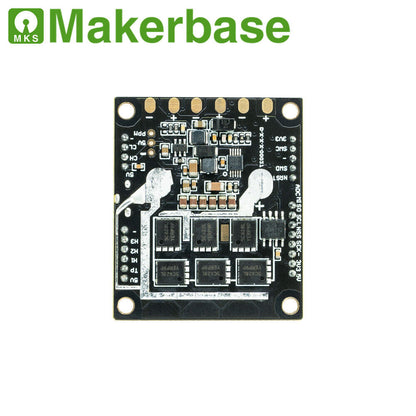

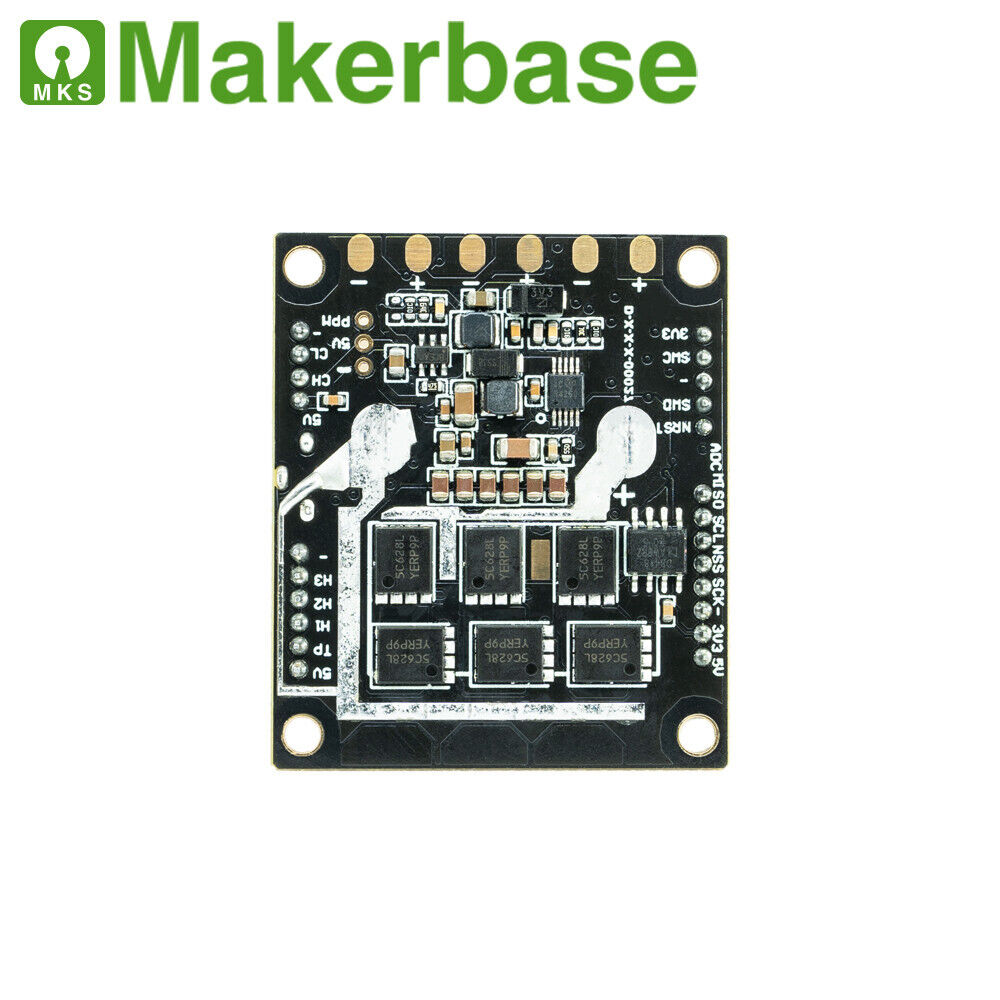

MOSFET: NTMFS5C628NLT1G or HYG025N06LS1C2
Microprocessor: STM32F405RGT6
Voltage: DC 8V-60V (3S-135)
Motor Type: 3-phase BLDC motor
ERPM: 150000 ERPM
Sensor Type: ABI / HALL / AS5047 / Sensorless
Communication Interface: PPM (RC Server)/Analog (ADC)/UART/I2C/USB/CAN
Control Model: Control modes such as duty cycle/speed/current
PCB Size: 46mm x 39mm x 1.6mm
